Ranger Trolling Motor Battery Switch Bracket – 520R & 521R

Ranger Trolling Motor Battery Switch Bracket – 520R & 521R

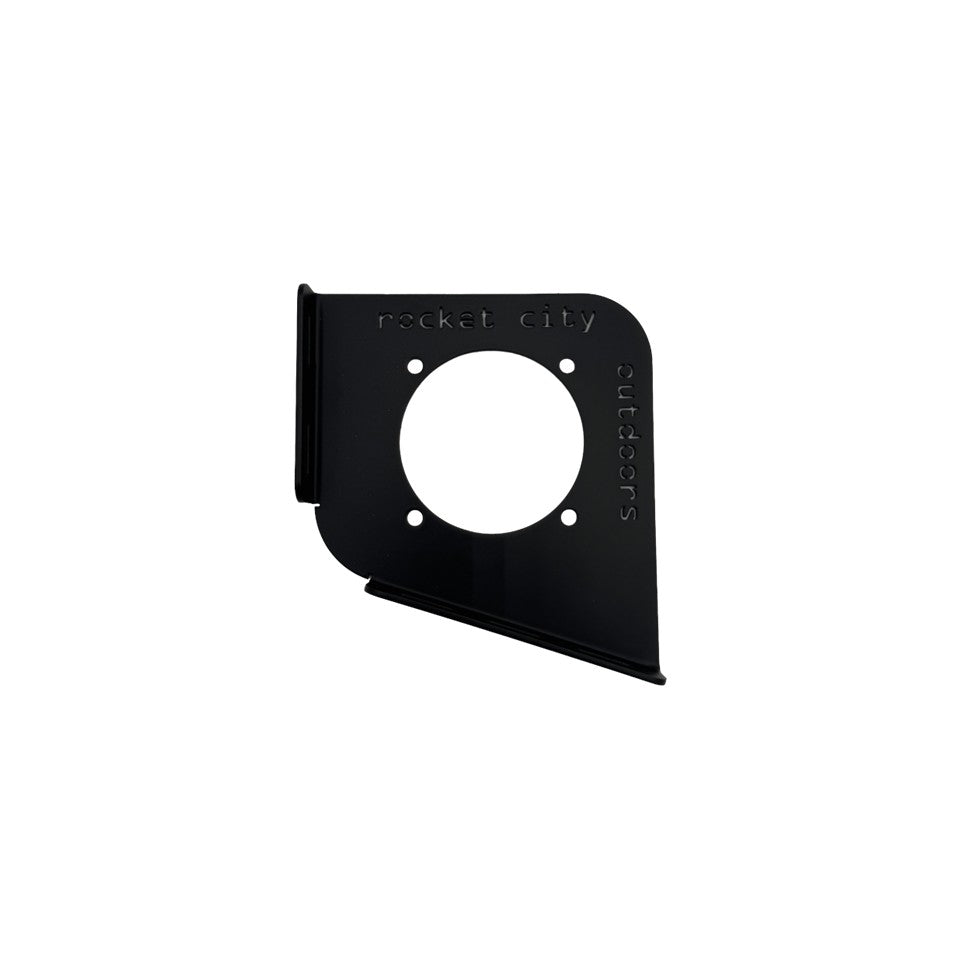

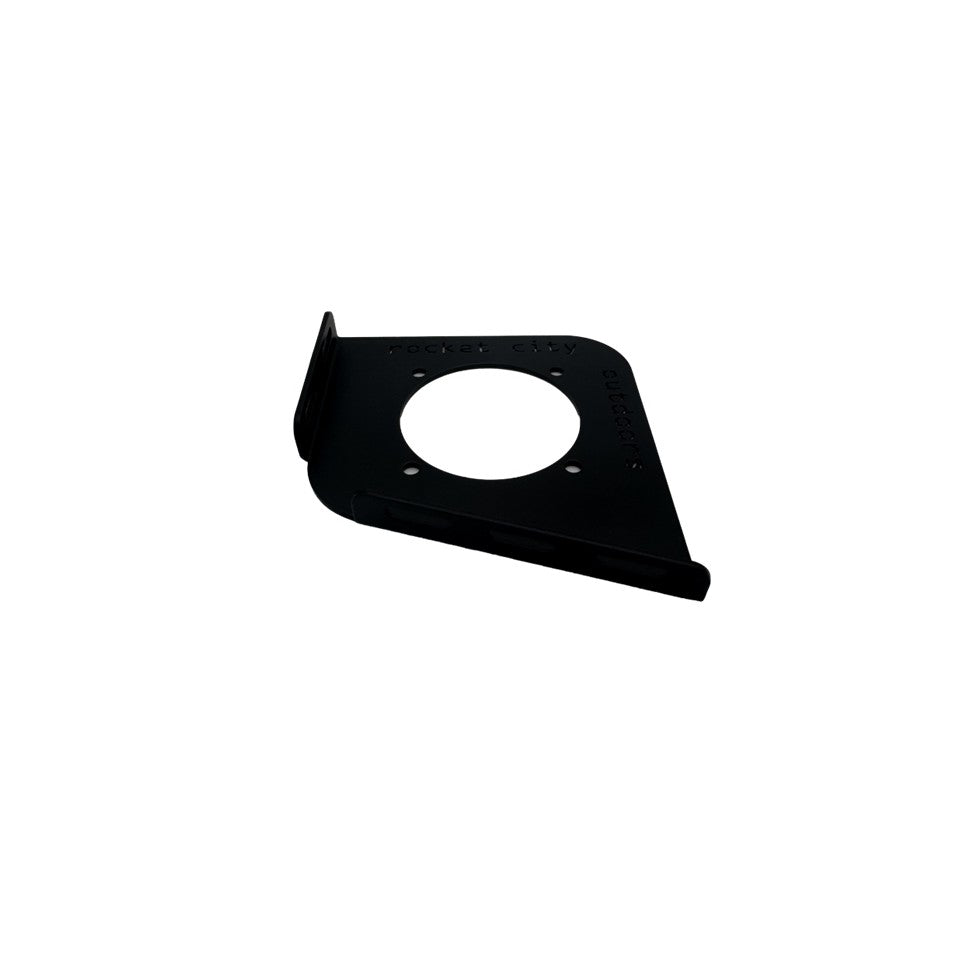

The Ranger Trolling Motor Battery Switch Bracket mounts one trolling motor battery switch in Ranger R-series bass boats, including the 520R and 521R. Match the distinctive battery-compartment layout to the product photos and customer installations before ordering. Check clearance for the switch, batteries and cable connections.

Materials and Product Development

Made from 0.090-inch-thick 5052-H32 aluminum with a matte black powder-coated finish. Designed, engineered, tested and manufactured in the USA by Rocket City Outdoors. Learn about Rocket City Outdoors.

What's Included

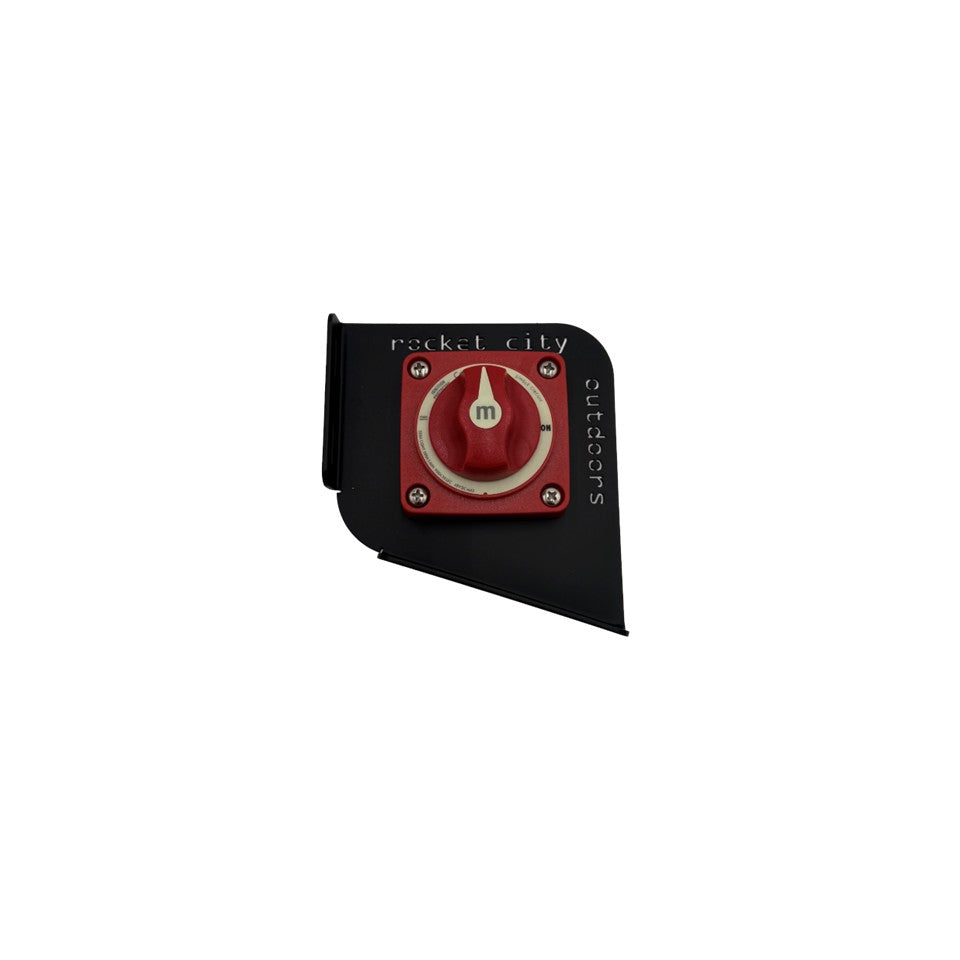

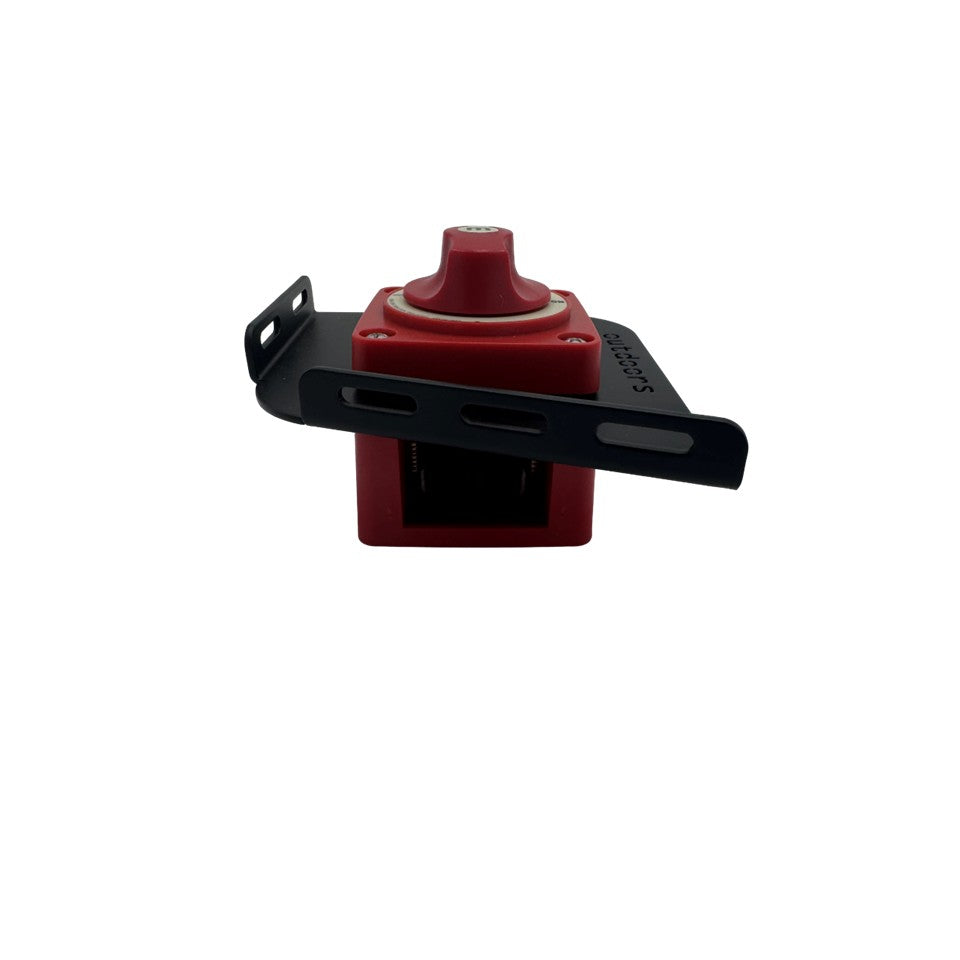

One mounting bracket, with fasteners and mounting hardware. Battery switches and wiring sold separately.

Installing the Ranger Trolling Motor Battery Switch Bracket

1. Dry-fit the bracket in the intended location and confirm clearance for the compartment lid, nearby equipment and connections.
2. Mark the fastener locations with a marker. Inspect behind the mounting surface, then drill appropriately sized pilot or mounting holes for the supplied fasteners.
3. Clean the mounting surface and secure the bracket using the included hardware.
4. Install the battery switch according to its manufacturer’s instructions. Keep connections or control cables supported and clear of moving parts.

Disconnect electrical power before installation and follow the equipment manufacturer’s wiring and mounting instructions.

See Customer Installations

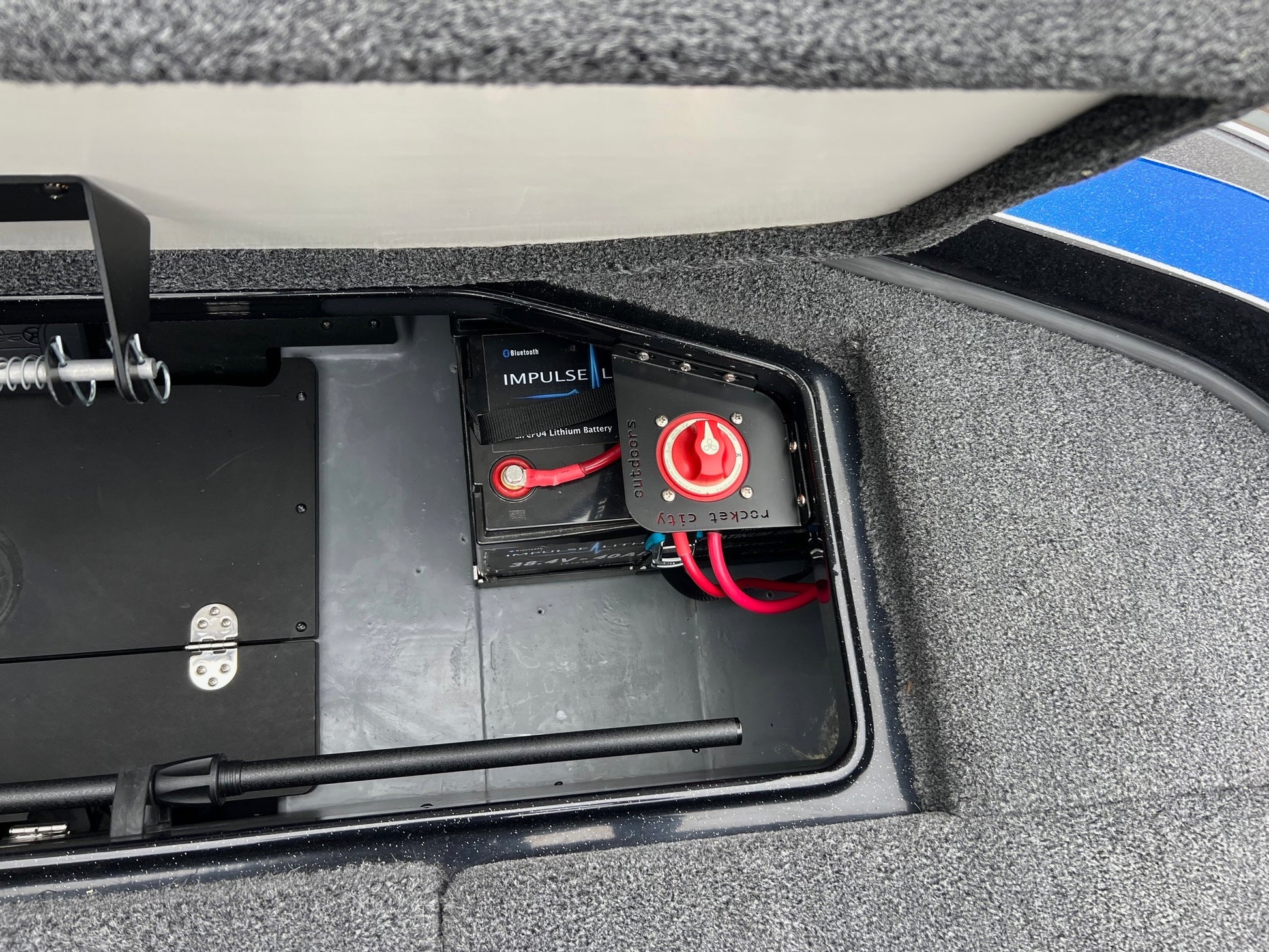

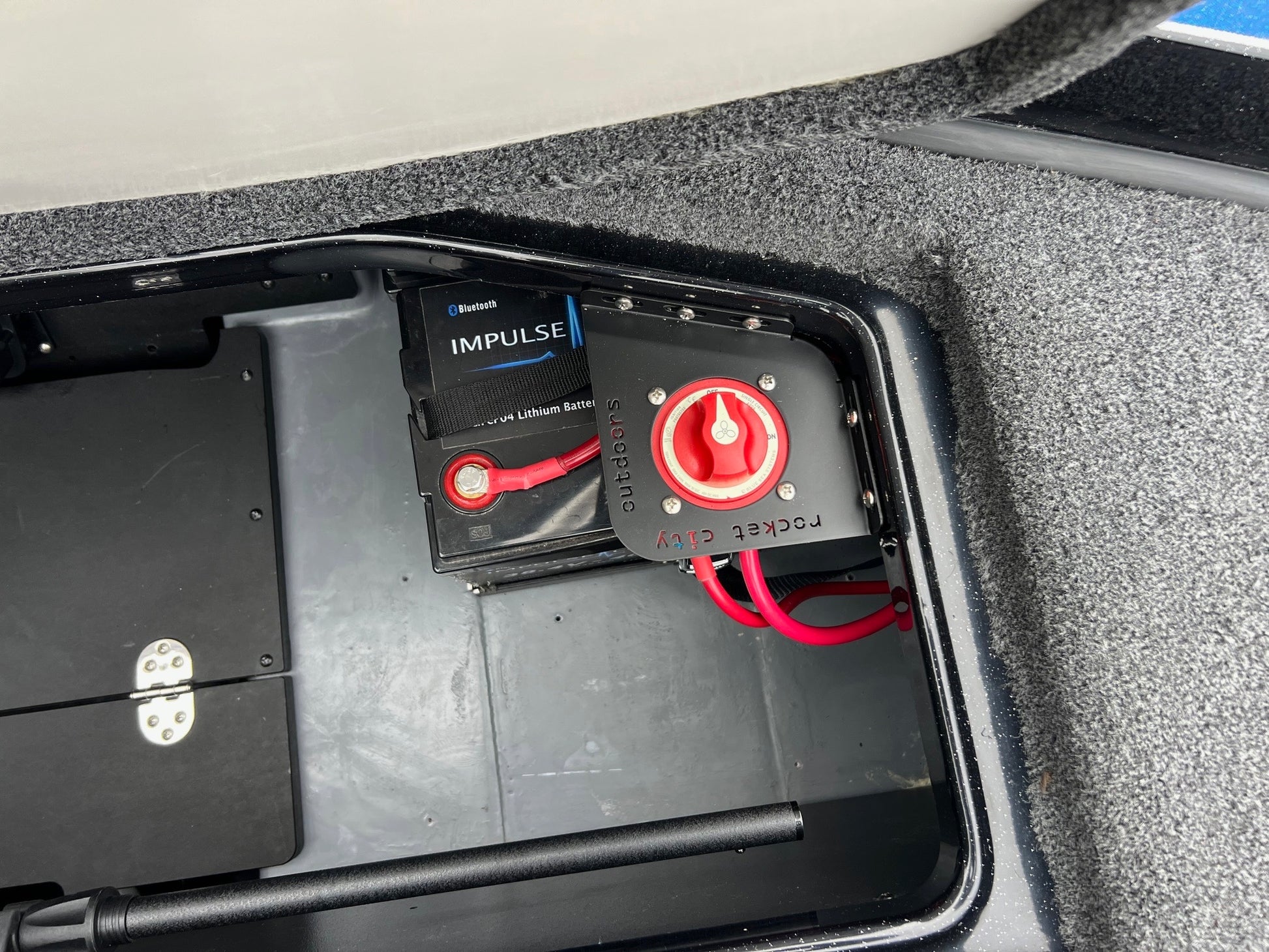

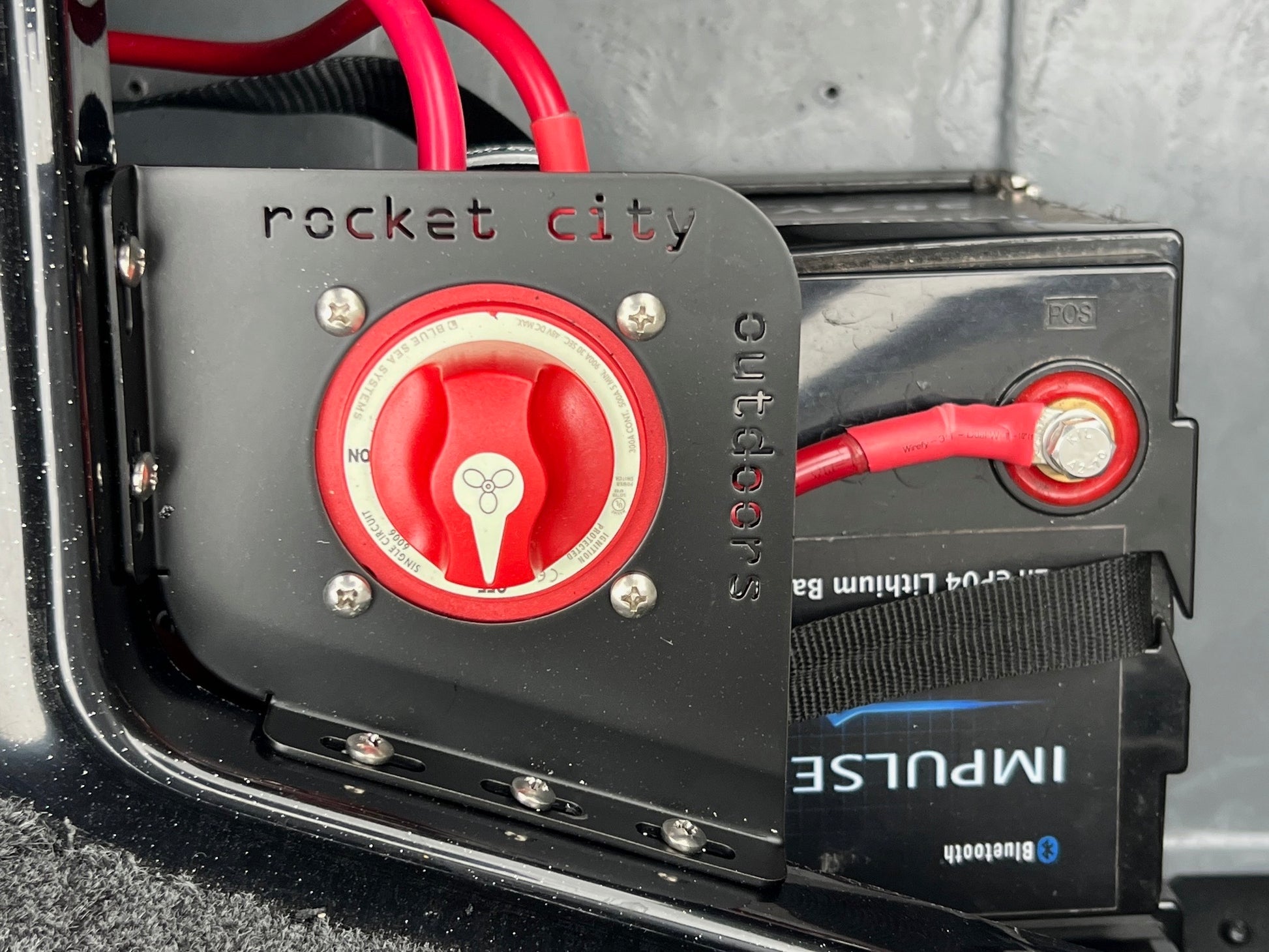

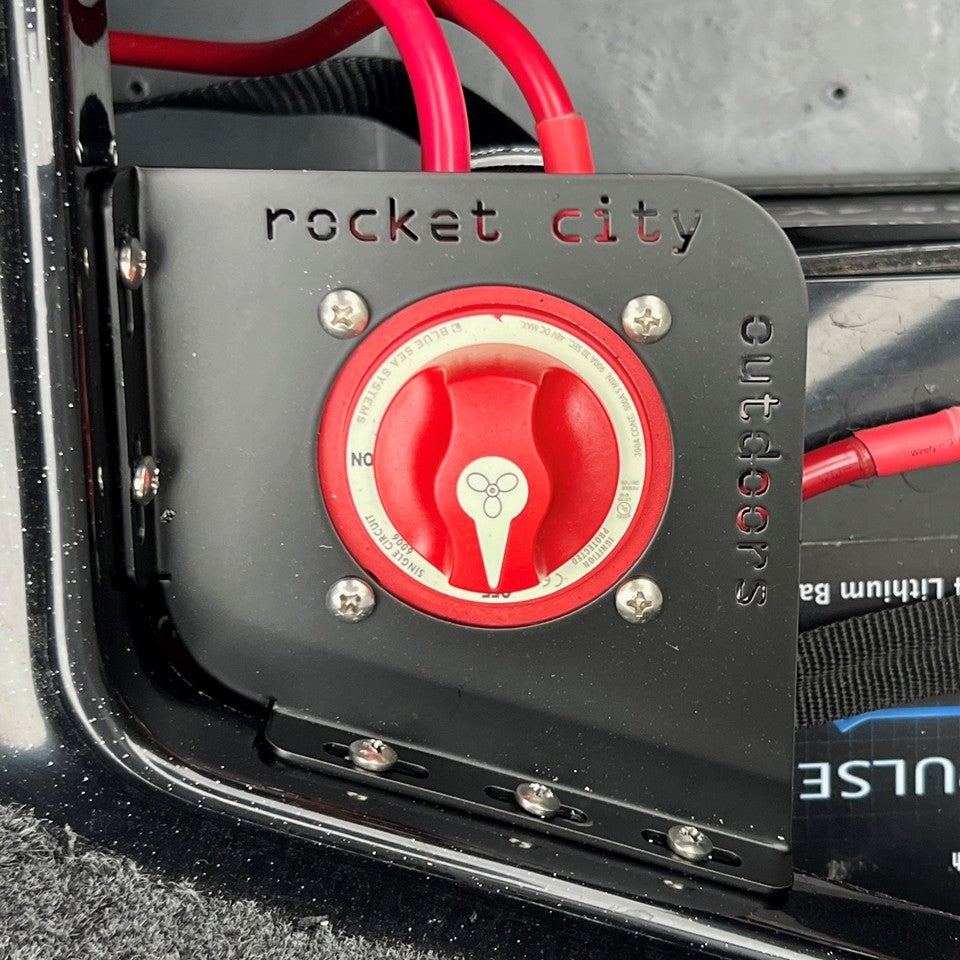

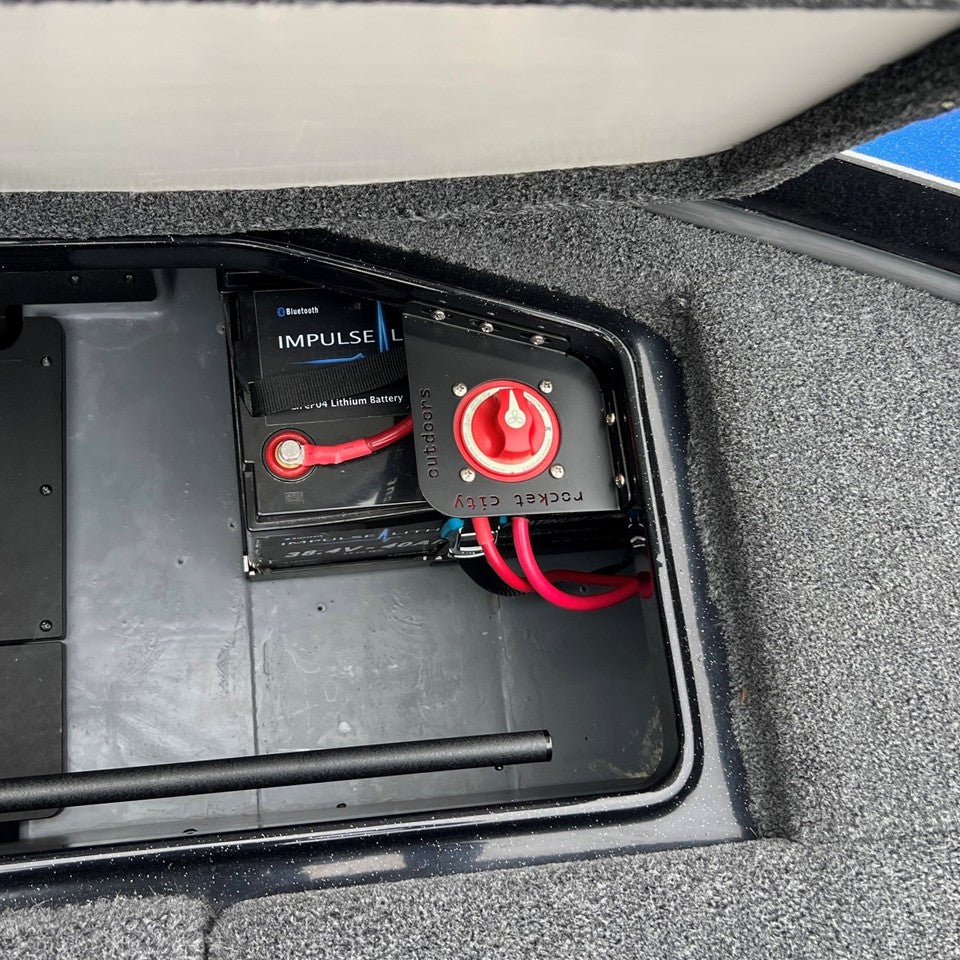

Visit the Customer Installation Gallery to browse customer-submitted boat photos and installation notes. Look for a comparable boat and mounting surface; photos are a visual reference rather than a guarantee that every boat has the same layout.

Not sure which bracket fits? Email justin@rocketcityoutdoors.com with your boat’s year, make and model, a compartment photo and relevant measurements before ordering.

Shop battery disconnect and cutoff switches.
