6007 1-2-BOTH Battery Switch

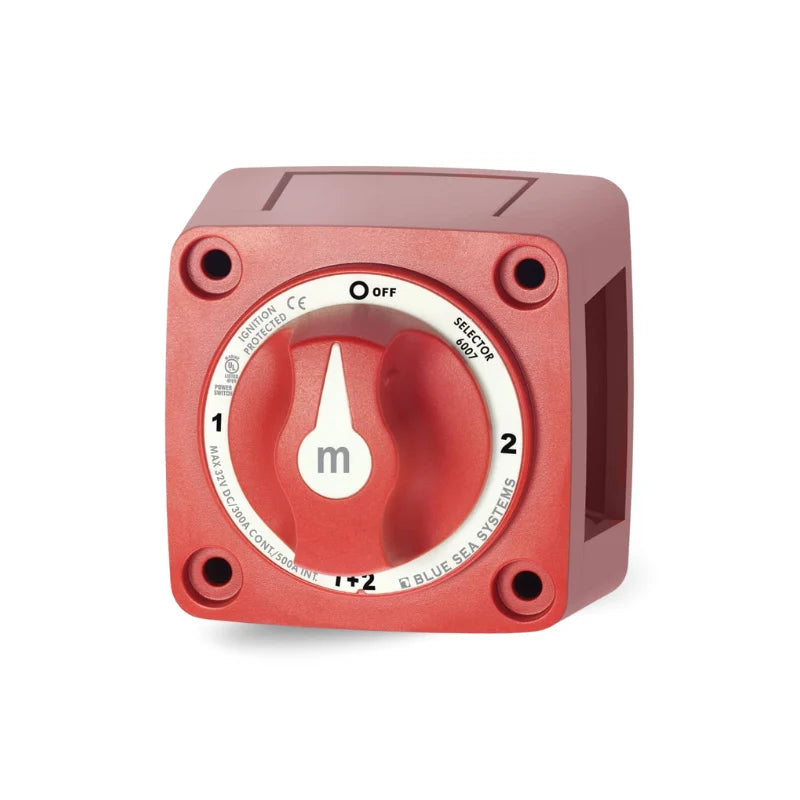

6007 m‑Series Mini Battery Selector Switch – 1‑2‑BOTH‑OFF

Compact Battery Control for Marine, RV & Off‑Grid Power Systems

Easily manage dual battery banks with this rugged, marine-grade selector switch. The 6007 m‑Series model features a compact footprint and offers 4-position control: Battery 1, Battery 2, BOTH, or full OFF. Ideal for boats, RVs, solar setups, and emergency power systems where reliable manual battery management is a must.

Key Features

• 4 Selector Positions: 1 / 2 / BOTH / OFF

• Selector Type: Single output, dual-input battery selector

• Make-Before-Break Design: Prevents arcing when switching between banks

• Current Ratings: 300A continuous, 500A intermittent, 900A cranking

• Voltage Rating: Up to 32V DC

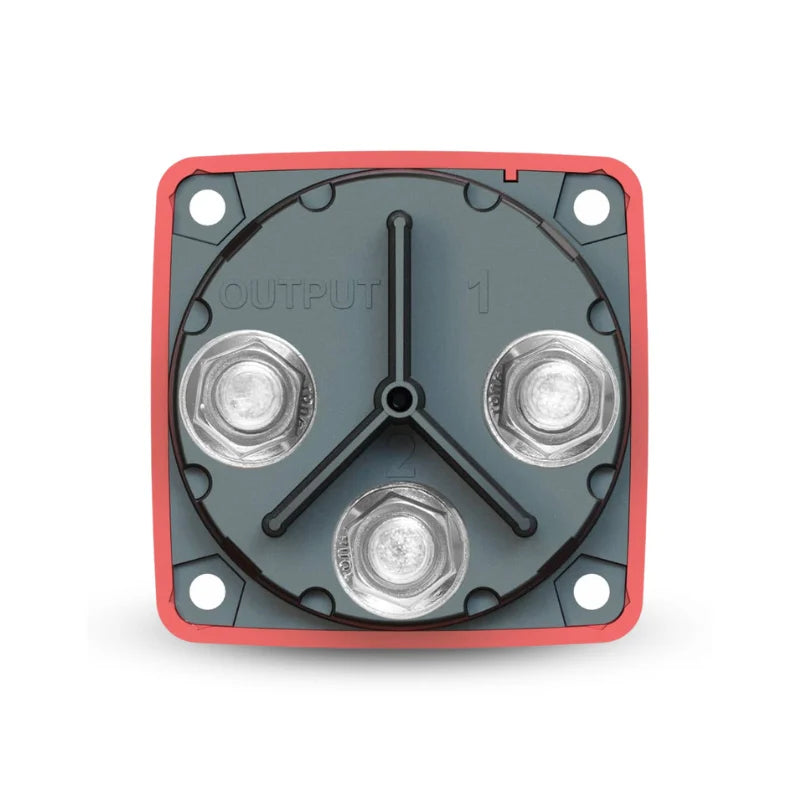

• Studs: 3/8″ tin-plated copper (7/8″ length)

• Ignition Protected: Safe for use in gasoline engine compartments

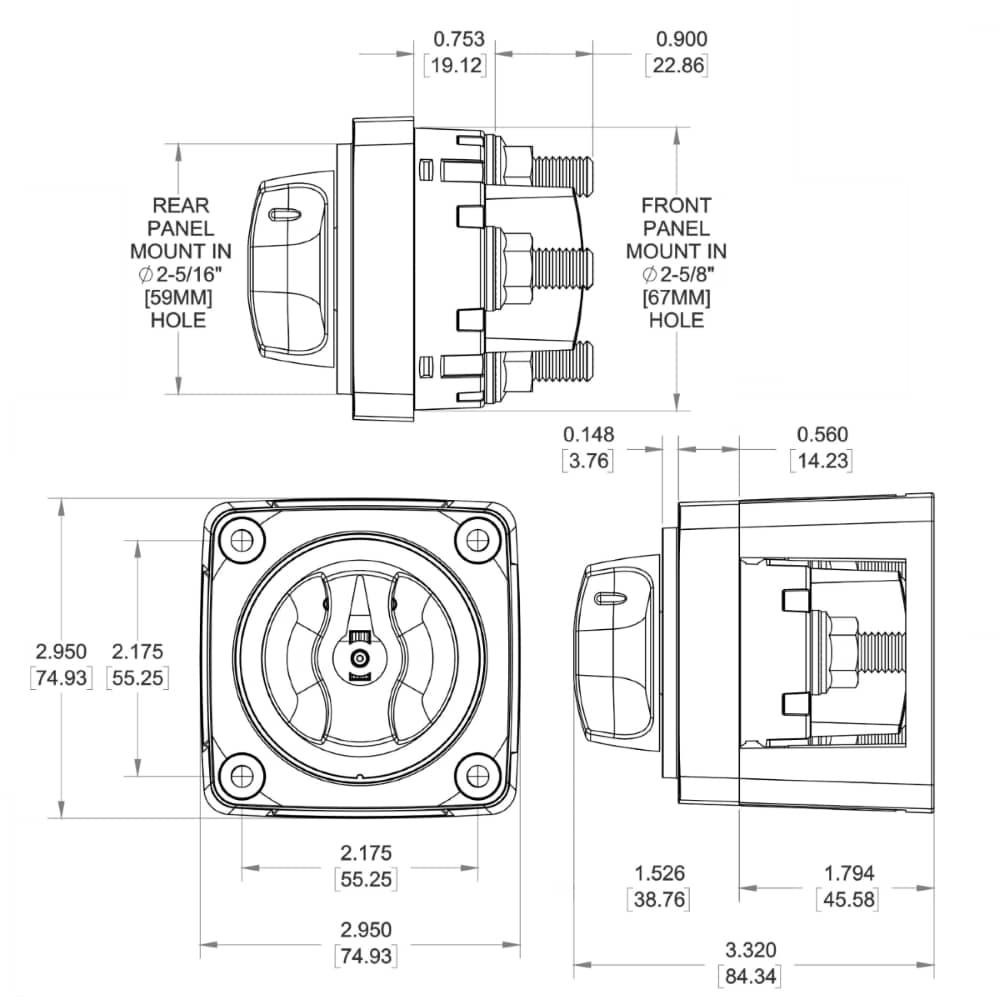

• Mounting: Surface or rear-panel with included insulating cover

What's Included

• 6007 m‑Series Battery Selector Switch

• Insulating rear cover

• Removable switch knob

• Mounting hardware

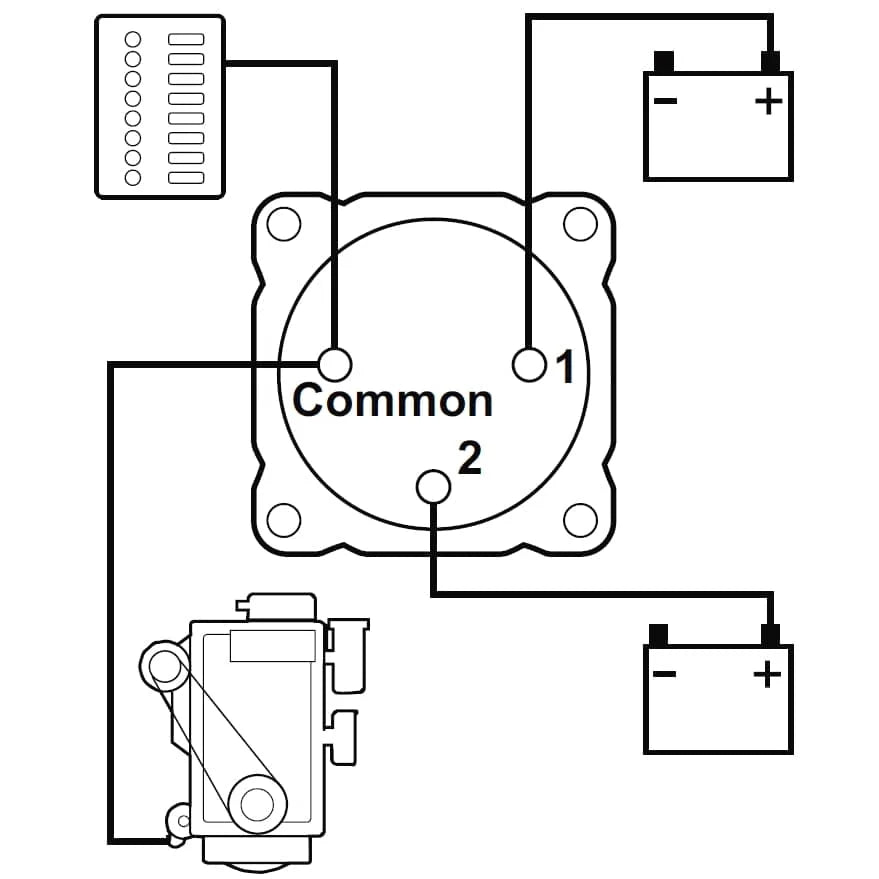

Wiring Options & Configurations

Position 1 – Battery 1 Only

Power your engine or main system using just your starting battery.

Position 2 – Battery 2 Only

Run house loads or auxiliary systems from your secondary battery, keeping the starter battery reserved.

BOTH – Parallel Both Batteries

Connect both banks in parallel for higher load demand or shared charging.

OFF – Disconnect All Power

Safely isolate all power during storage or maintenance.

This selector is ideal when used with alternators, solar charge controllers, or when you need to manually combine batteries in case of low voltage on one bank.

Why It Stands Out

• Space-Saving Design: Perfect for tight engine rooms, battery compartments, and control panels.

• Reliable Switching: Snap-action knob gives you clear tactile feedback for each position.

• Built for Harsh Conditions: Durable, ignition-protected construction built to perform in marine and mobile environments.

• Flexible Mounting: Includes rear cover and hardware for secure, compliant installation.

Ideal For:

• Boats with dual battery setups

• RV systems using starter/house batteries

• Trolling motor isolation

• Manual backup to ACR or battery isolators

• Off-grid DC systems

• Jump starting marine outboards

Control your power with confidence. Whether you’re managing engine start, deep-cycle storage, or off-grid backup, the 6007 m‑Series Selector Switch delivers the durability and flexibility your system needs.
