Phoenix Port-Side Trolling Motor Battery Switch Bracket

Phoenix Port-Side Trolling Motor Battery Switch Bracket

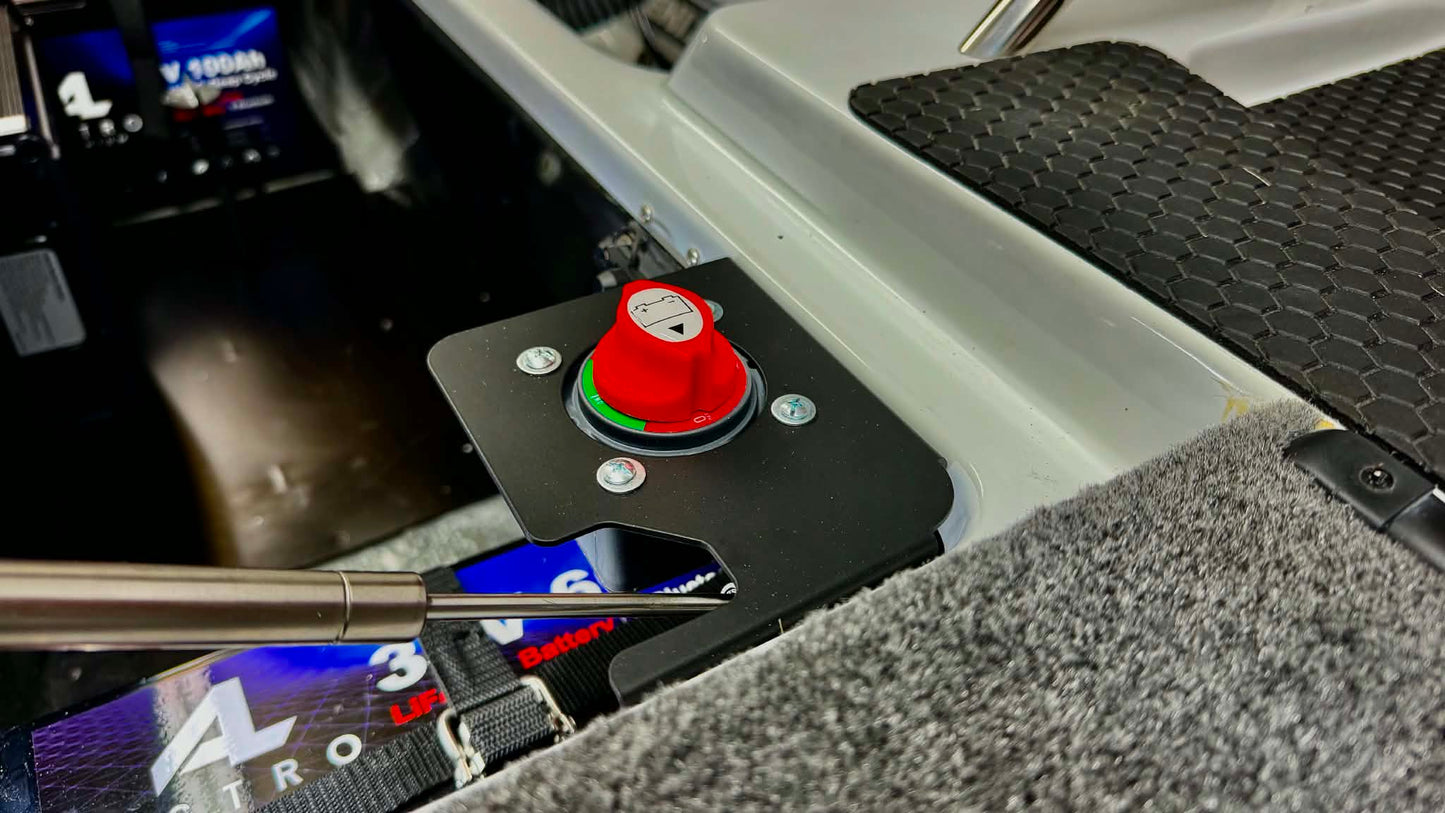

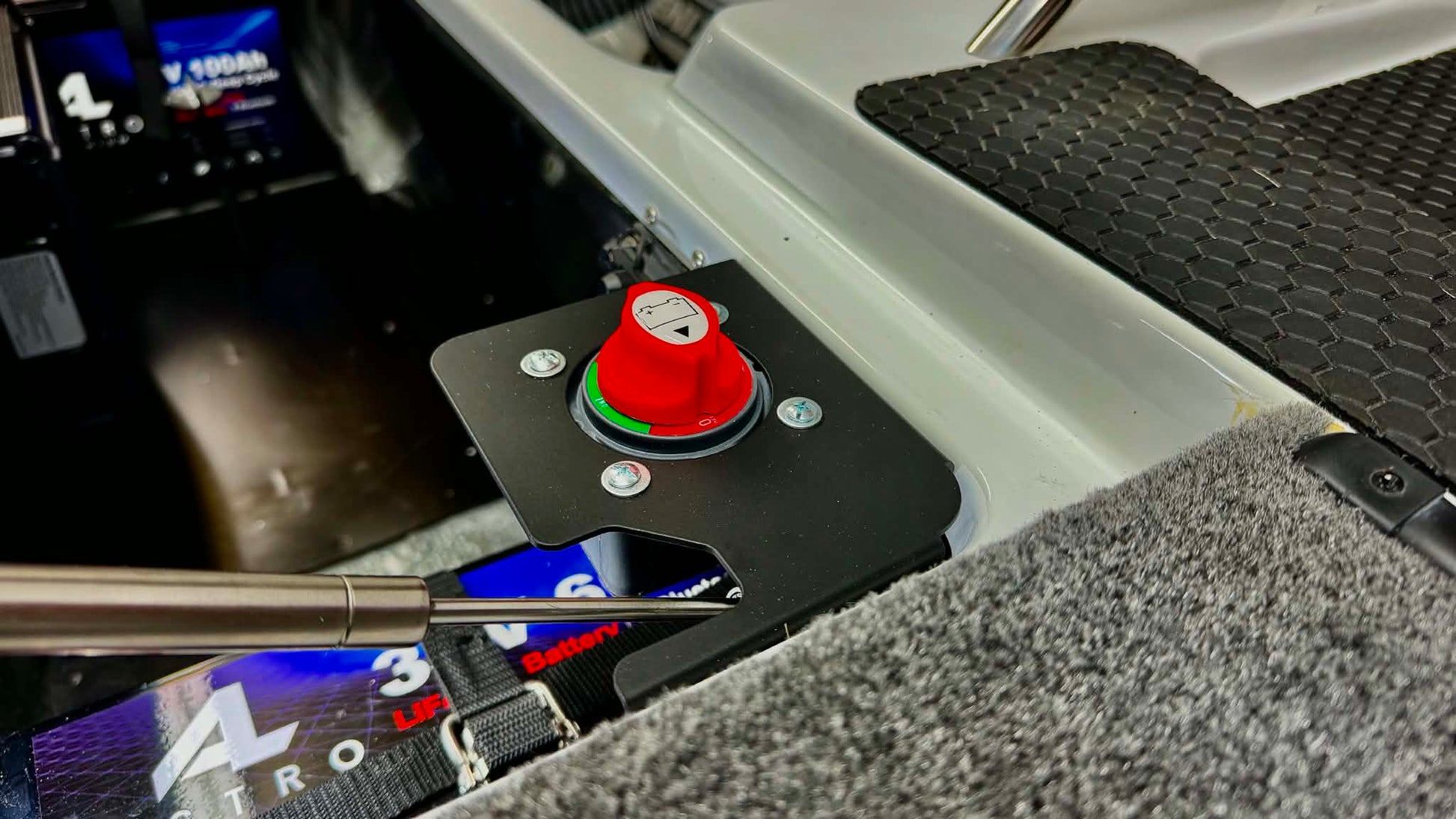

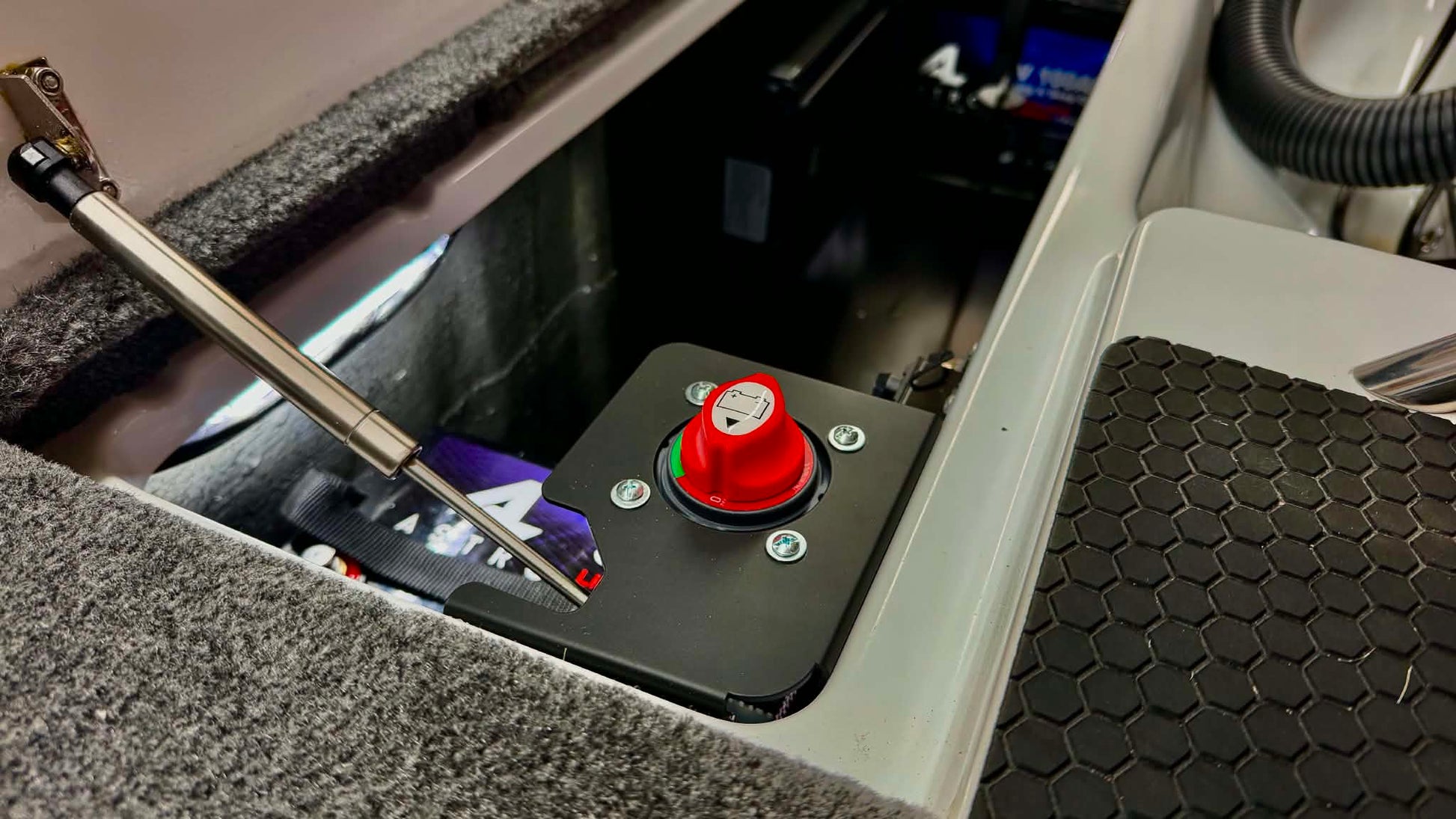

This Phoenix trolling motor battery switch bracket holds one switch on the port side of a compatible Phoenix bass-boat battery compartment. A vertical mounting lip at least 1 inch high is required. Phoenix boats 19 feet and longer generally have this lip; 18-foot models may have a lip around 0.75 inch high and may not provide sufficient screw engagement. Check lip height and lid-gas-strut clearance before ordering.

Need two switches? Compare the Phoenix double battery switch corner bracket.

Compatible Battery Switches

Compatible with Blue Sea Systems m-Series Mini Battery Switches: 6006 (ON/OFF), 6007 (1–2–BOTH–OFF battery selector), and 6011 (Dual Circuit Plus). Select compact rotary ON/OFF battery disconnect switches may also fit. Check housing dimensions and mounting-hole spacing before choosing another brand. Choose a switch with electrical ratings appropriate for your system; bracket fit does not establish electrical suitability.

Dimensions

5.75 inches wide, 4.5 inches deep, 1.1 inch high

Materials and Product Development

Made from 0.090-inch-thick 5052-H32 aluminum with a matte black powder-coated finish. Designed, engineered, tested and manufactured in the USA by Rocket City Outdoors. Learn about Rocket City Outdoors.

What's Included

Includes one mounting bracket and mounting hardware. Battery switch is NOT included. The switch and wiring are sold separately.

Installation Overview

1. Dry-fit the bracket in the intended location and confirm clearance for the compartment lid, nearby equipment and connections.
2. Mark the fastener locations with a marker. Inspect behind the mounting surface, then drill appropriately sized pilot or mounting holes for the supplied fasteners.
3. Clean the mounting surface and secure the bracket using the included hardware.
4. Install the battery switch according to its manufacturer’s instructions. Keep connections or control cables supported and clear of moving parts.

Disconnect electrical power before installation and follow the equipment manufacturer’s wiring and mounting instructions.

See Customer Installations

Visit the Customer Installation Gallery to browse customer-submitted boat photos and installation notes. Look for a comparable boat and mounting surface; photos are a visual reference rather than a guarantee that every boat has the same layout.

Not sure which bracket fits? Email justin@rocketcityoutdoors.com with your boat’s year, make and model, a compartment photo and relevant measurements before ordering.
