Bass Boat Headlight Mount - Rub Rail

Bass Boat Headlight Mount - Rub Rail

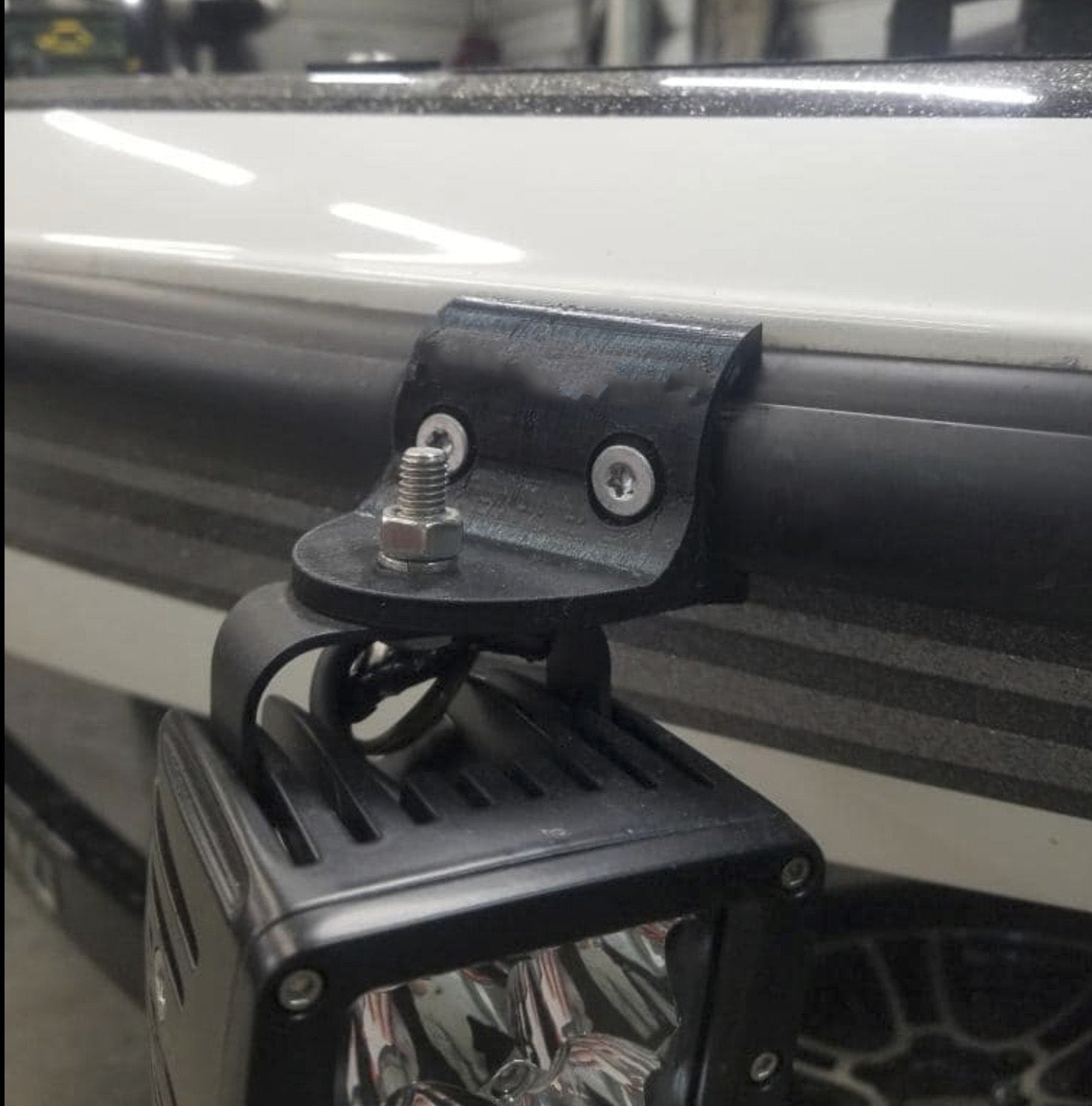

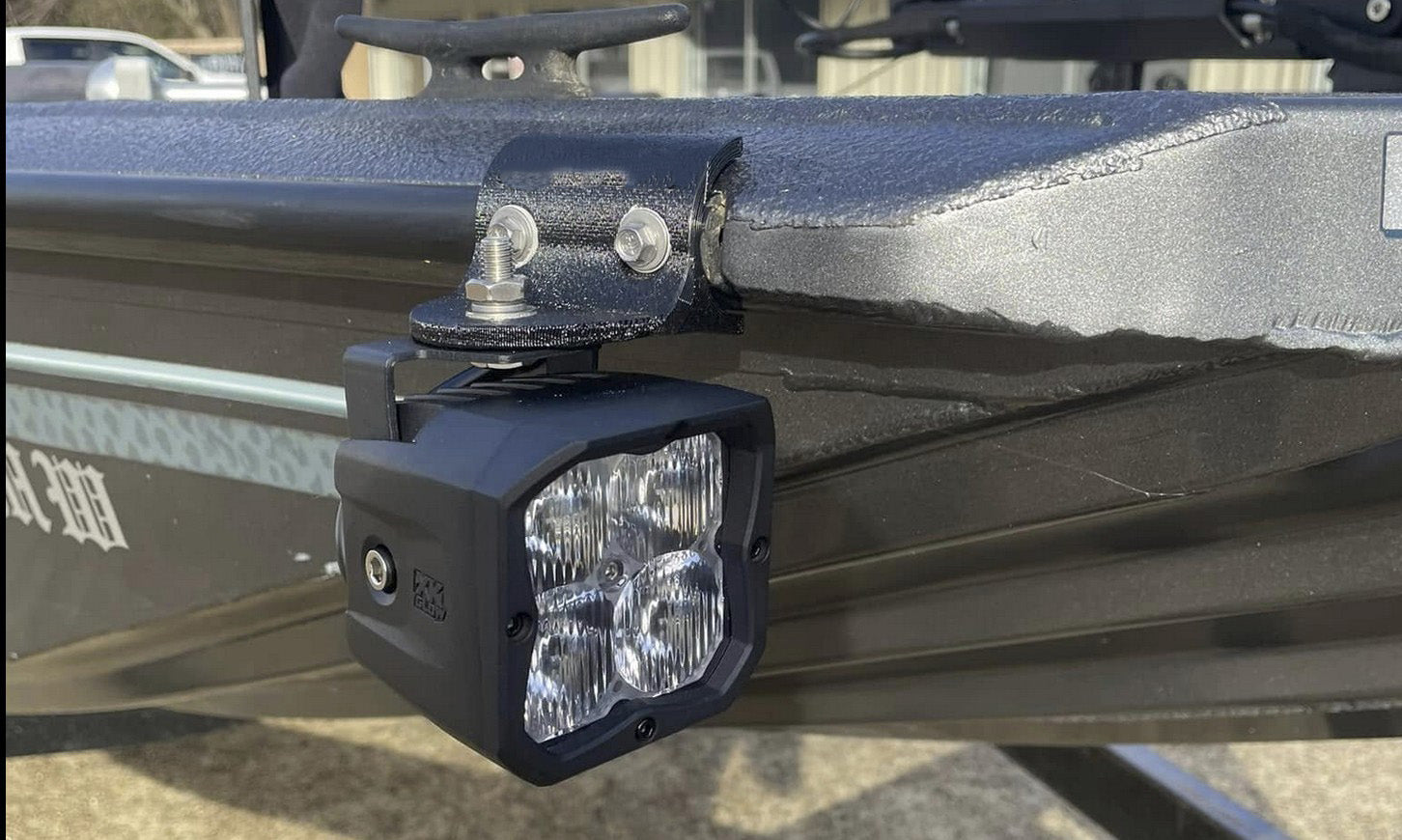

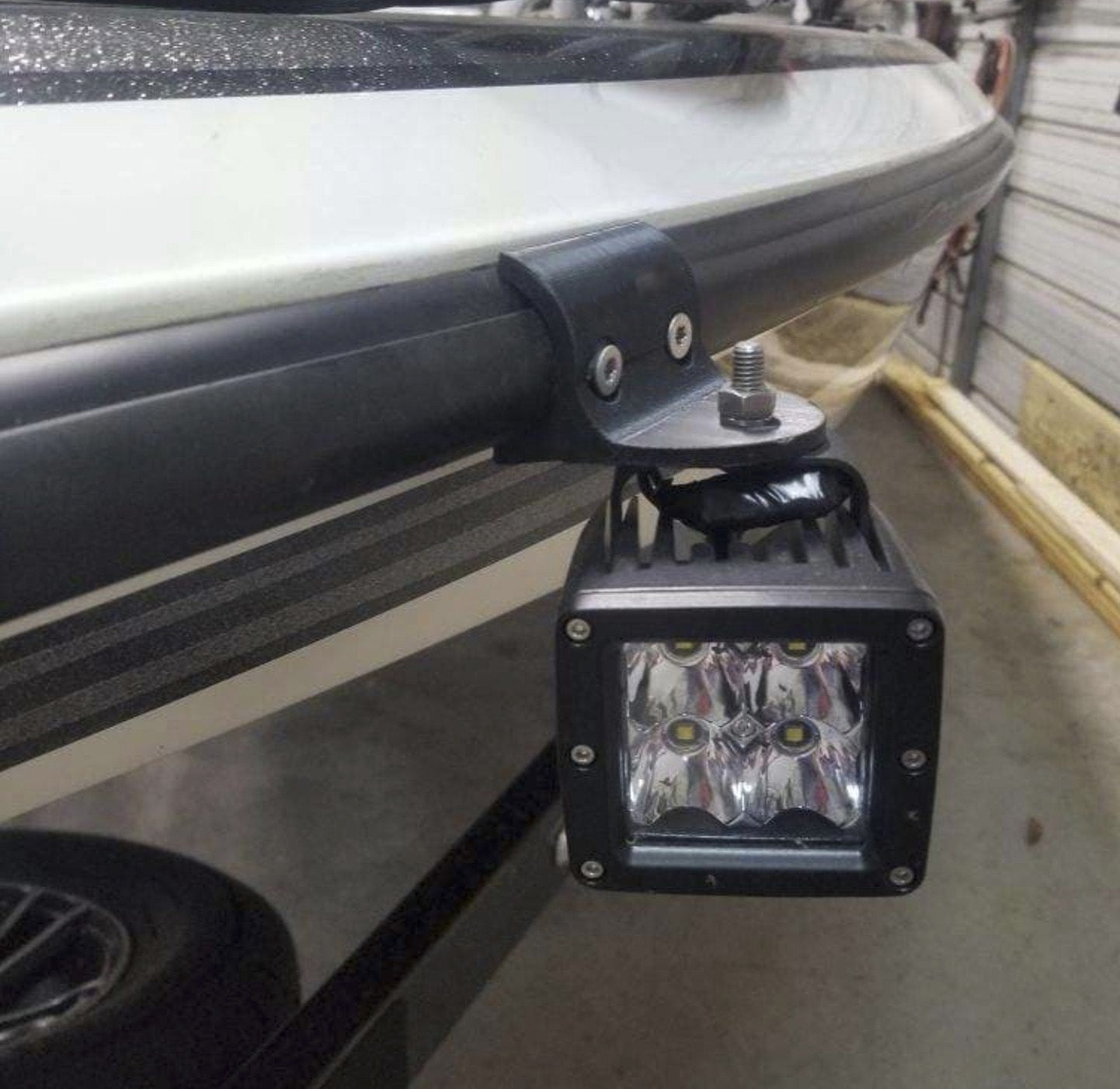

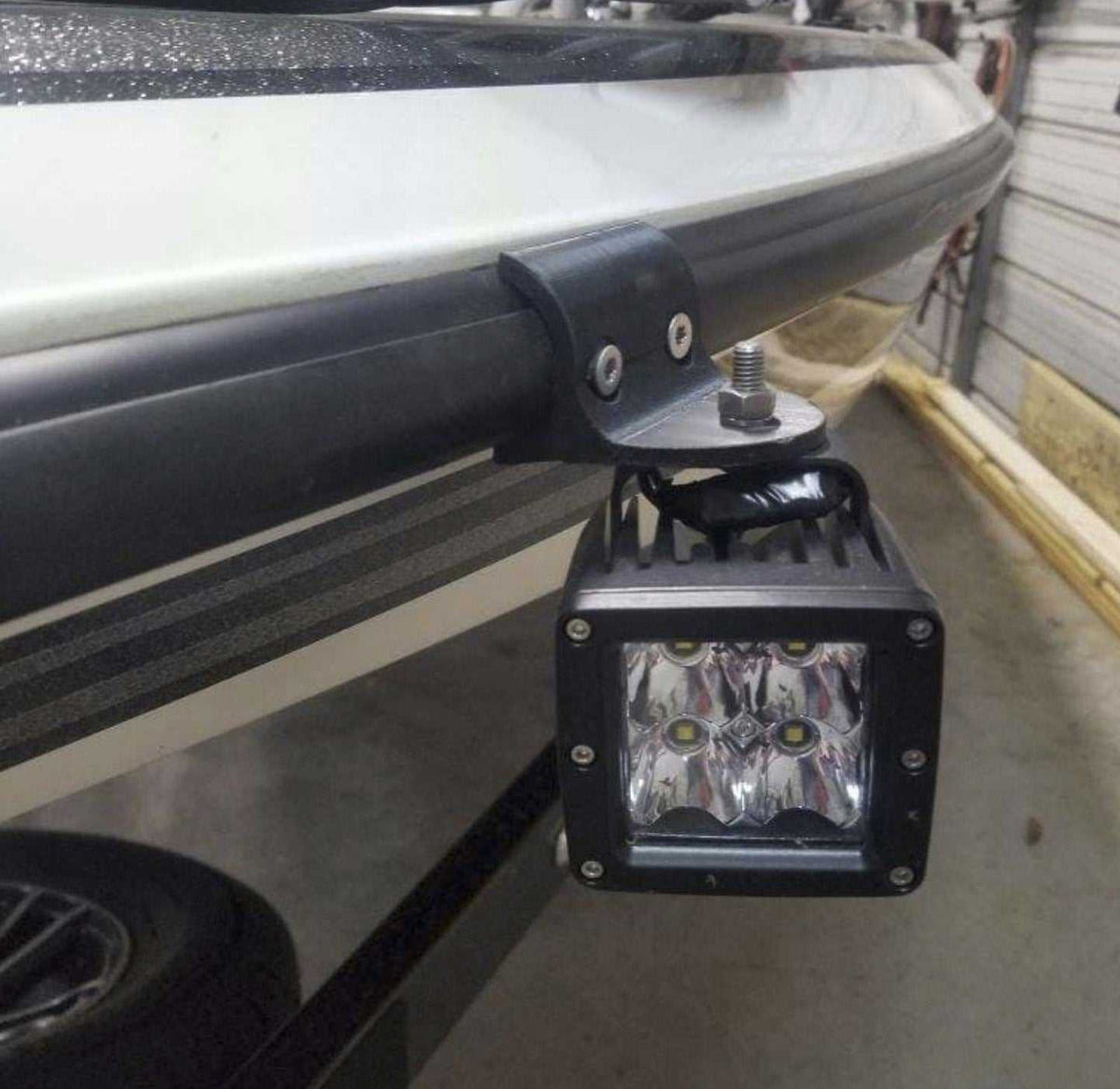

This rub rail headlight mount supports cube-style LED docking, scene or headlight fixtures on bass boats, offshore fishing boats and other compatible boats. Maximum rub-rail thickness is 1.4 inches. Select Port (LHS) or Starboard (RHS) for the installation side. Compare the light mounting hardware and available space with the product photos.

Dimensions

2.5 inches wide × 2.75 inches deep × 1.9 inches high. Maximum rub-rail thickness: 1.4 inches.

Materials and Product Development

3D printed from UV-resistant, weather-resistant ASA for outdoor marine use. Designed, engineered, tested and manufactured in the USA by Rocket City Outdoors. Learn about Rocket City Outdoors.

What's Included

Includes one rub rail headlight mount for the selected side and mounting hardware. LED light is NOT included. Lights shown in product photos illustrate installation and are sold separately. For both sides of your boat, order one Port (LHS) mount and one Starboard (RHS) mount.

Installation Overview

1. Measure your rub rail and dry-fit the selected port or starboard mount. Confirm clearance for the LED light, its mounting hardware and wiring.
2. Mark the fastener locations with a marker. Inspect behind the mounting surface, then drill appropriately sized pilot or mounting holes for the supplied fasteners.
3. Clean the mounting surface and secure the mount using the included hardware.
4. Install the light according to its manufacturer’s instructions. Route and support the light’s wiring clear of moving parts.

Disconnect electrical power before installation and follow the equipment manufacturer’s wiring and mounting instructions.

See Customer Installations

Visit the Customer Installation Gallery to browse customer-submitted boat photos and installation notes. Look for a comparable boat and mounting surface; photos are a visual reference rather than a guarantee that every boat has the same layout.

Not sure which bracket fits? Email justin@rocketcityoutdoors.com with your boat’s year, make and model, a compartment photo and relevant measurements before ordering.

Care and Warranty

Clean with soap and water only. The product includes a limited lifetime warranty. If it breaks under normal use, the customer can send a picture to receive a replacement.

Frequently Asked Questions

Which lights fit this rub rail headlight mount?

Designed for cube-style LED docking, scene or headlight fixtures. Compare your light’s mounting hardware and clearance with the product photos before ordering.

Will it fit my boat’s rub rail?

Maximum rub-rail thickness is 1.4 inches. The mount measures 2.5 inches wide × 2.75 inches deep × 1.9 inches high. Check the rail profile and available space before ordering.

Do I need port or starboard?

Port (LHS) is the boat’s left side and Starboard (RHS) is its right side when facing forward. Each purchase includes one mount for the selected side.

Are hardware and the LED light included?

Mounting hardware is included. The LED light is NOT included. Lights shown in photos illustrate installation and are sold separately.

What is the mount made from?

3D printed in the USA from UV-resistant, weather-resistant ASA for outdoor marine use. Clean with soap and water only.
