Battery Switch Corner Bracket for Bass Boats

Battery Switch Corner Bracket for Bass Boats

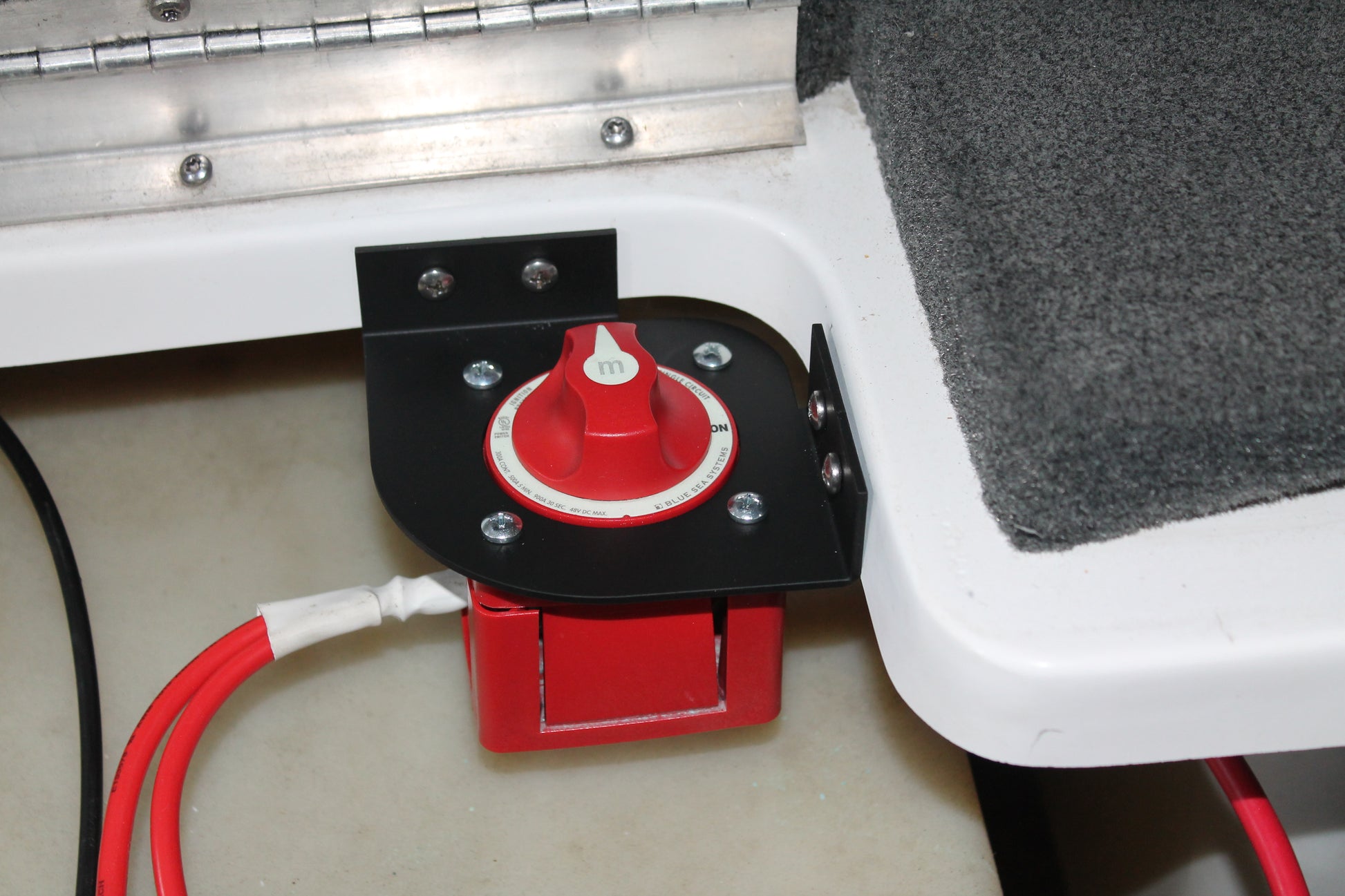

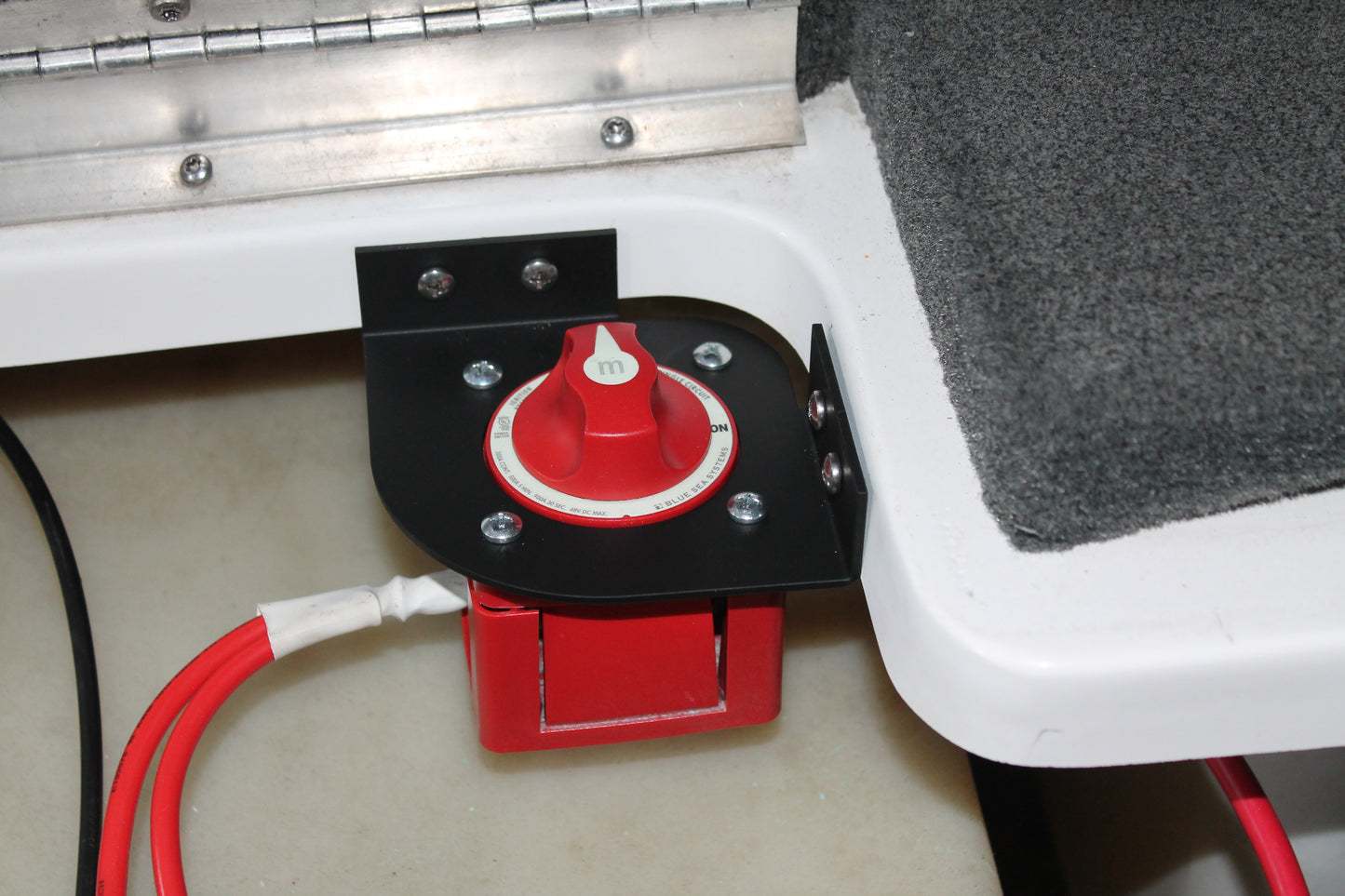

The Battery Switch Corner Bracket holds one switch in bass boats with rectangular battery compartments and right-angle corners. A vertical mounting lip at least 1 inch high is required. Choose the Lip Up or Lip Down option to match your compartment, then check switch-body, terminal and cable clearance.

Compatible Battery Switches

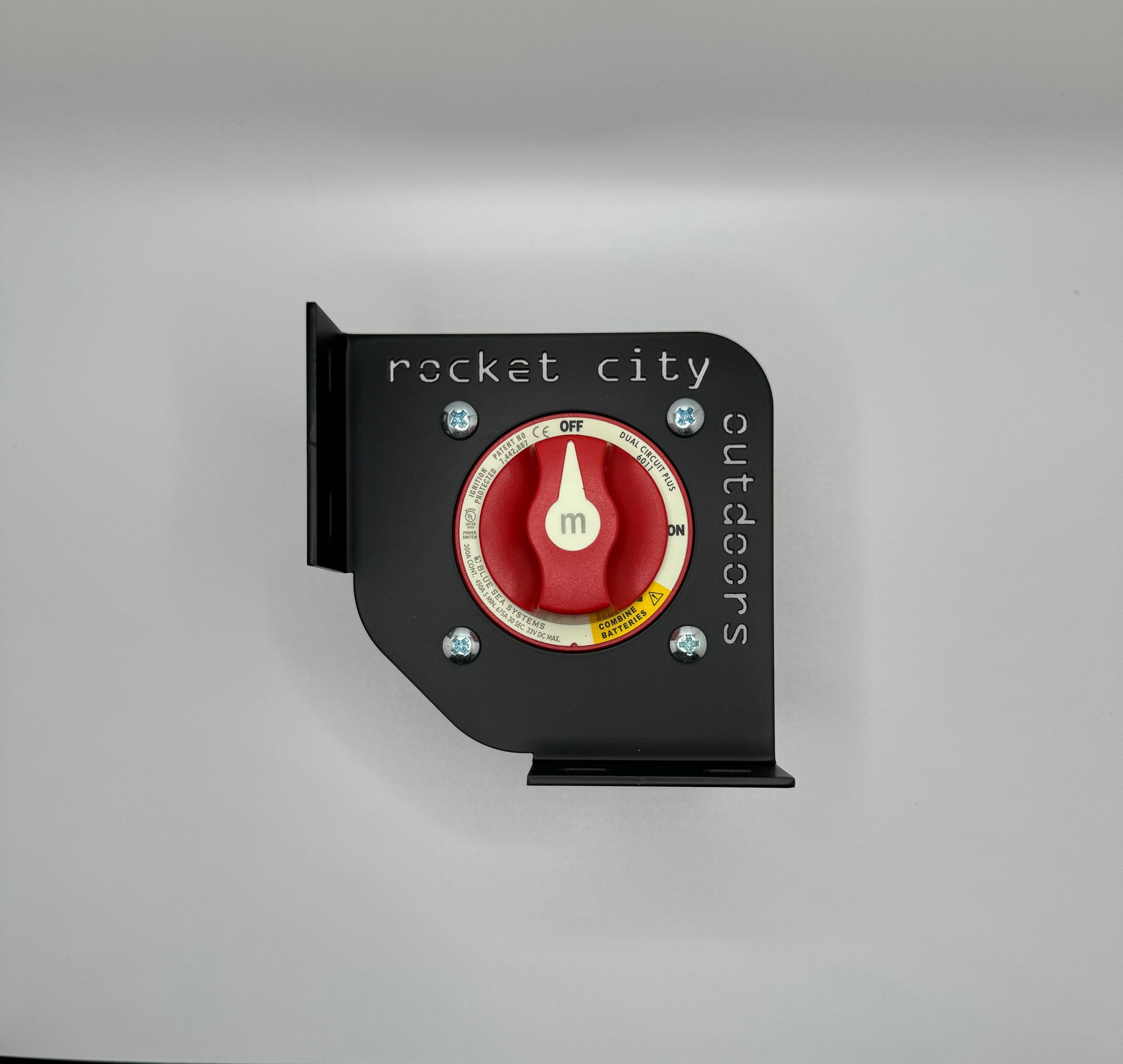

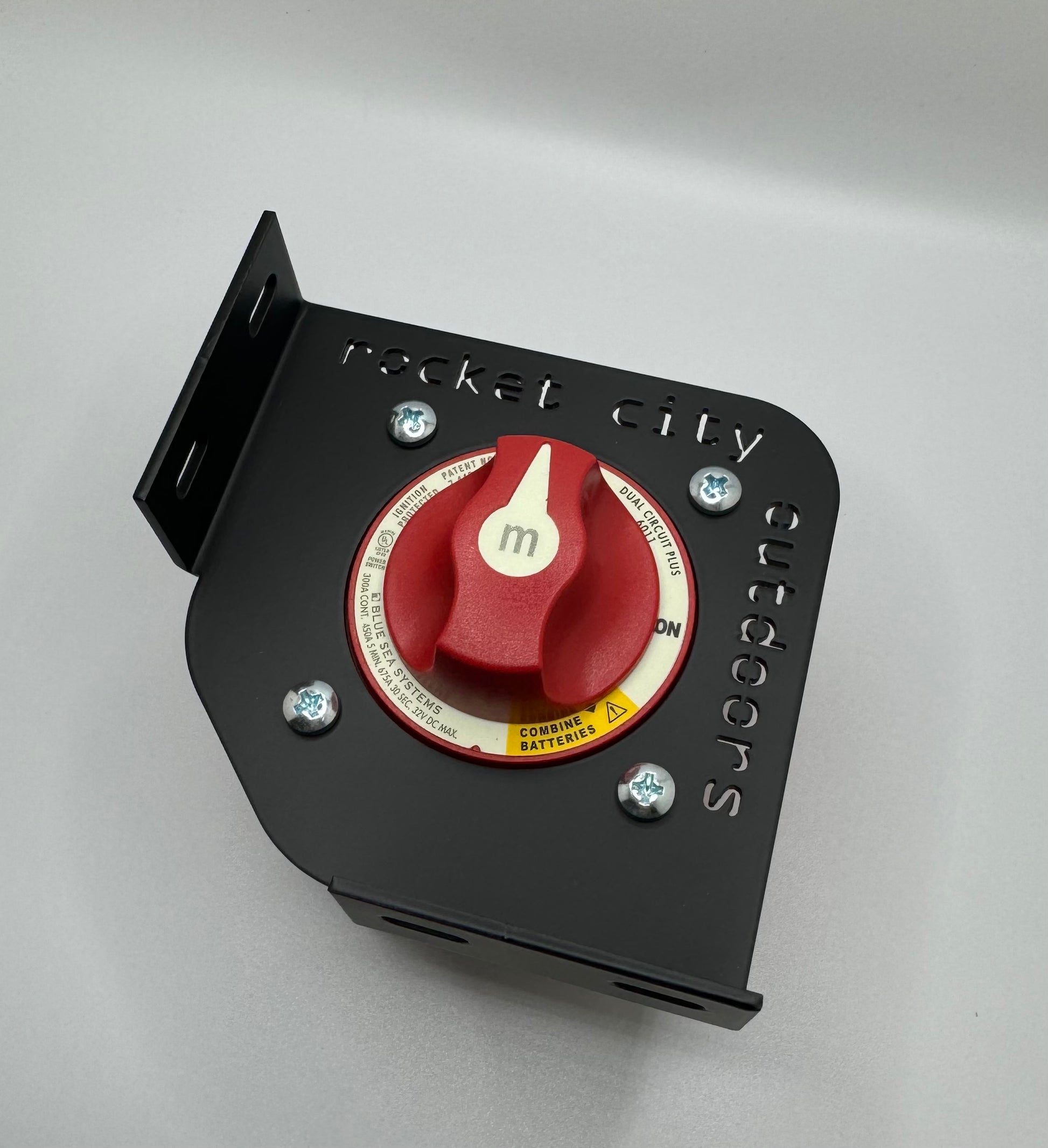

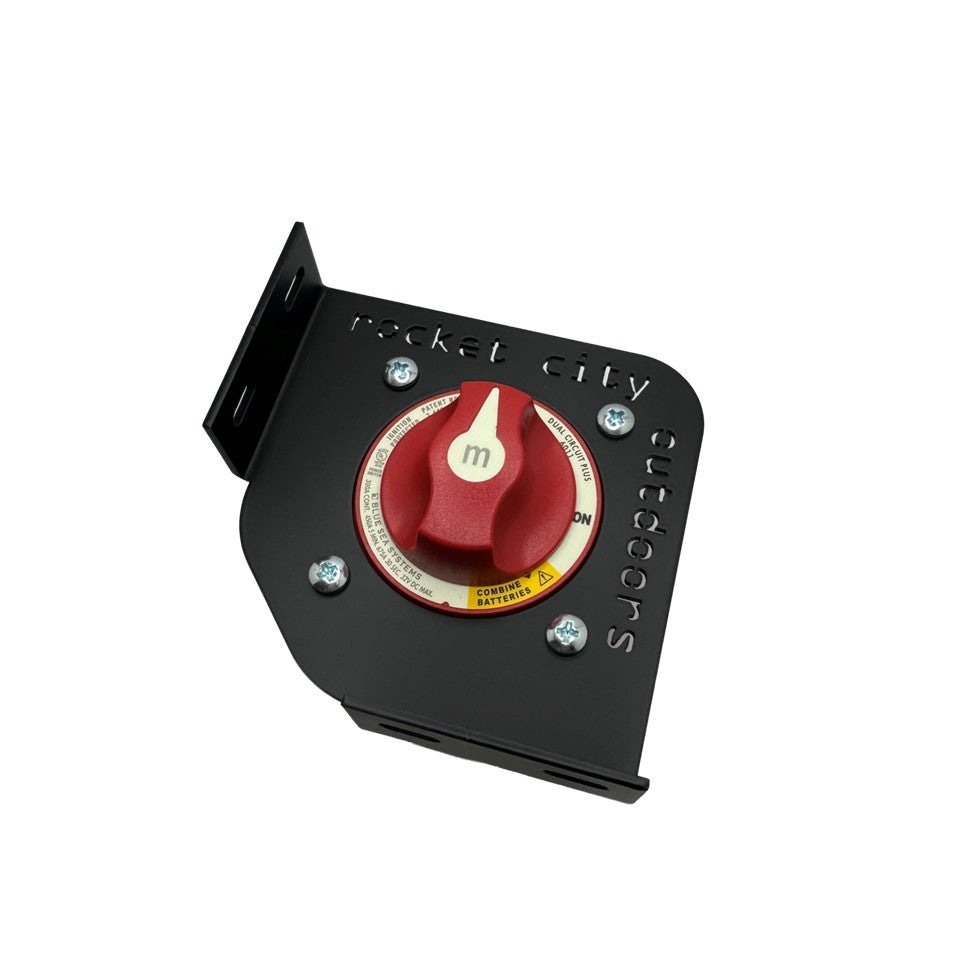

Compatible with Blue Sea Systems m-Series Mini Battery Switches: 6006 (ON/OFF), 6007 (1–2–BOTH–OFF battery selector), and 6011 (Dual Circuit Plus). Select compact rotary ON/OFF battery disconnect switches may also fit. Check housing dimensions and mounting-hole spacing before choosing another brand. Choose a switch with electrical ratings appropriate for your system; bracket fit does not establish electrical suitability.

Dimensions

4.5 inches wide × 4.5 inches deep × 1.0 inch high

Materials and Product Development

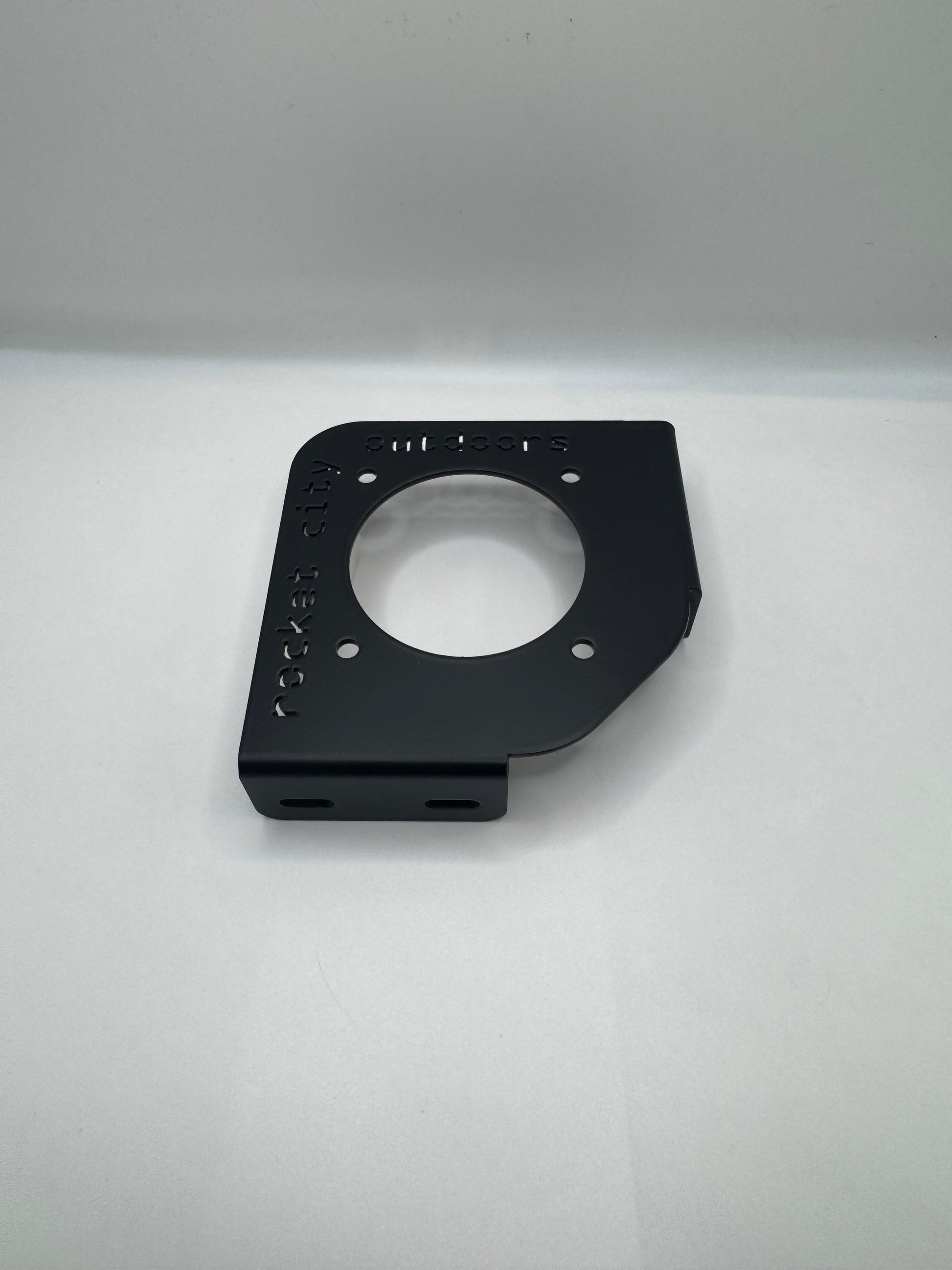

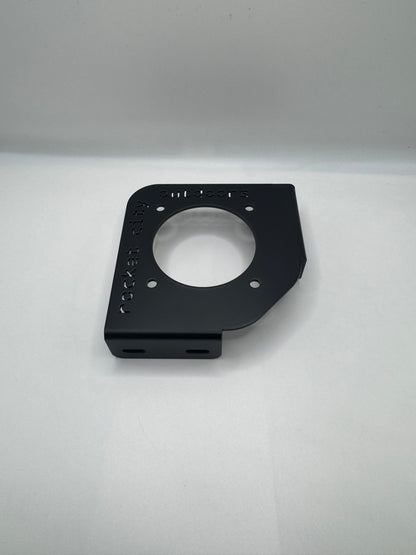

Made from 0.090-inch-thick 5052-H32 aluminum with a matte black powder-coated finish. Designed, engineered, tested and manufactured in the USA by Rocket City Outdoors. Learn about Rocket City Outdoors.

What's Included

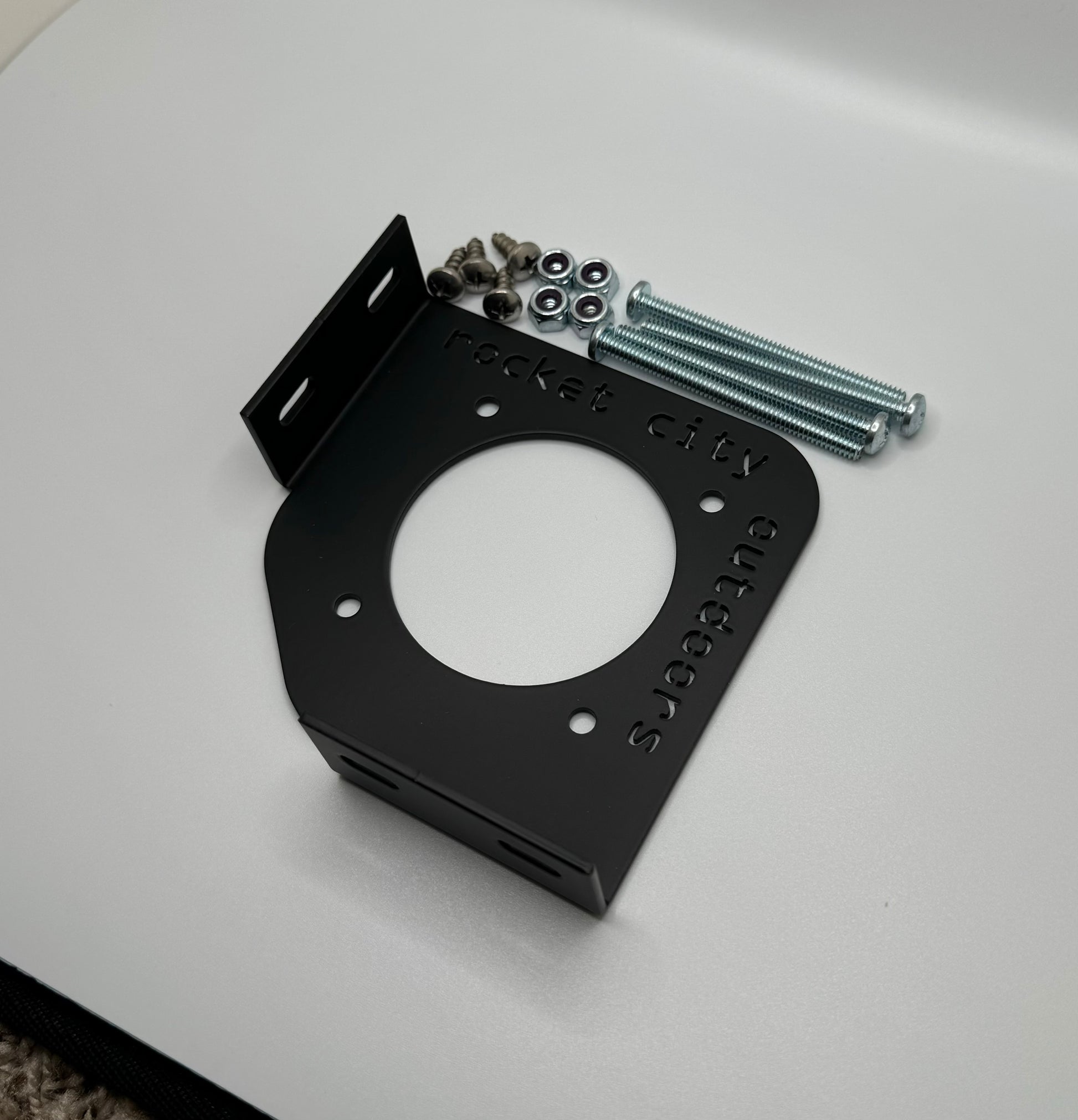

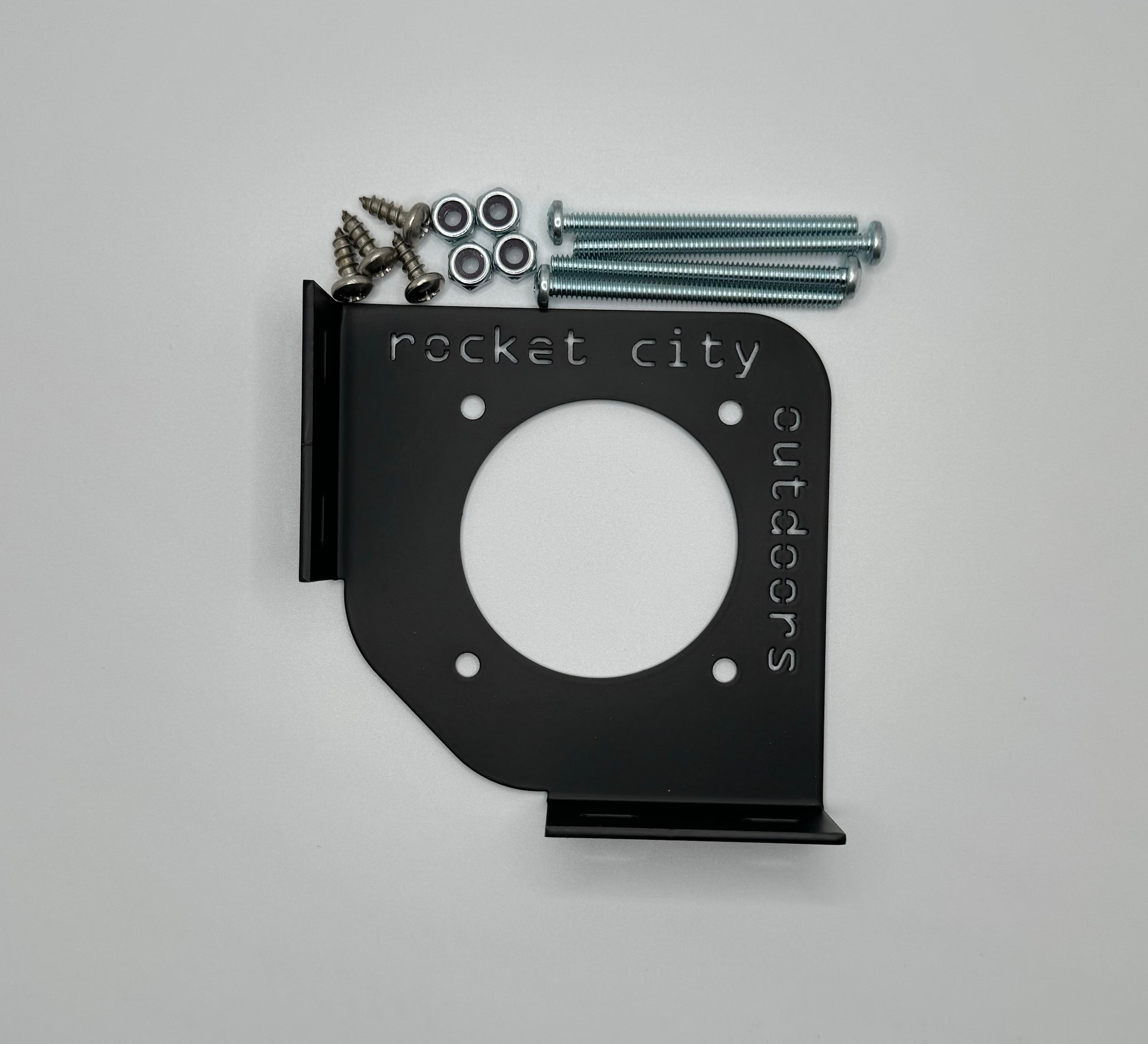

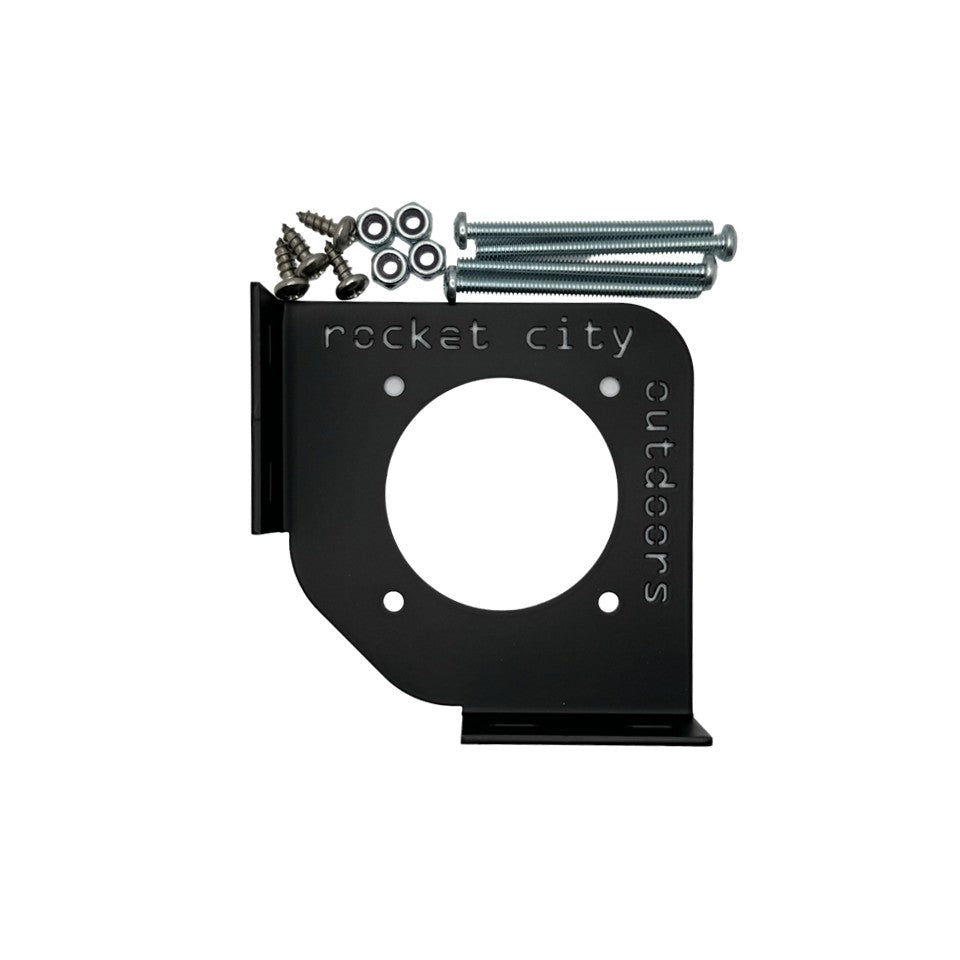

One mounting bracket, with fasteners and mounting hardware. Battery switches and wiring sold separately.

Installing the Battery Switch Corner Bracket

1. Dry-fit the bracket in the intended location and confirm clearance for the compartment lid, nearby equipment and connections.
2. Mark the fastener locations with a marker. Inspect behind the mounting surface, then drill appropriately sized pilot or mounting holes for the supplied fasteners.
3. Clean the mounting surface and secure the bracket using the included hardware.
4. Install the battery switch according to its manufacturer’s instructions. Keep connections or control cables supported and clear of moving parts.

Disconnect electrical power before installation and follow the equipment manufacturer’s wiring and mounting instructions.

See Customer Installations

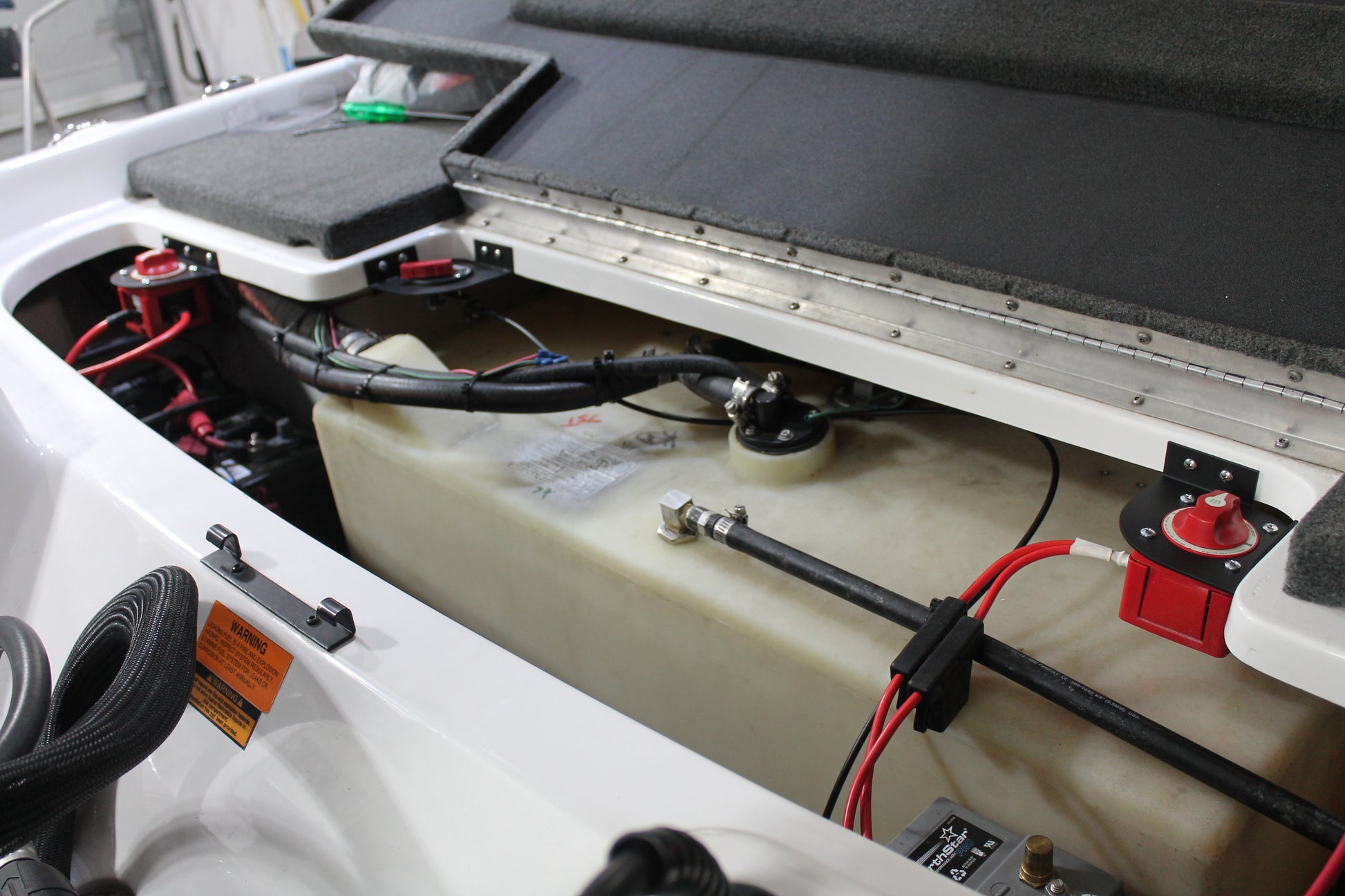

Visit the Customer Installation Gallery to browse customer-submitted boat photos and installation notes. Look for a comparable boat and mounting surface; photos are a visual reference rather than a guarantee that every boat has the same layout.

Not sure which bracket fits? Email justin@rocketcityoutdoors.com with your boat’s year, make and model, a compartment photo and relevant measurements before ordering.

Shop battery disconnect and cutoff switches.

Care and Warranty

Clean with soap and water. The bracket is made from corrosion-resistant marine-grade aluminum for marine environments. Rocket City Outdoors provides a limited lifetime warranty against cracks and structural defects under normal use. Claims require review and approval; damage from gross negligence, accidents, collisions, or vehicle wrecks is excluded.
